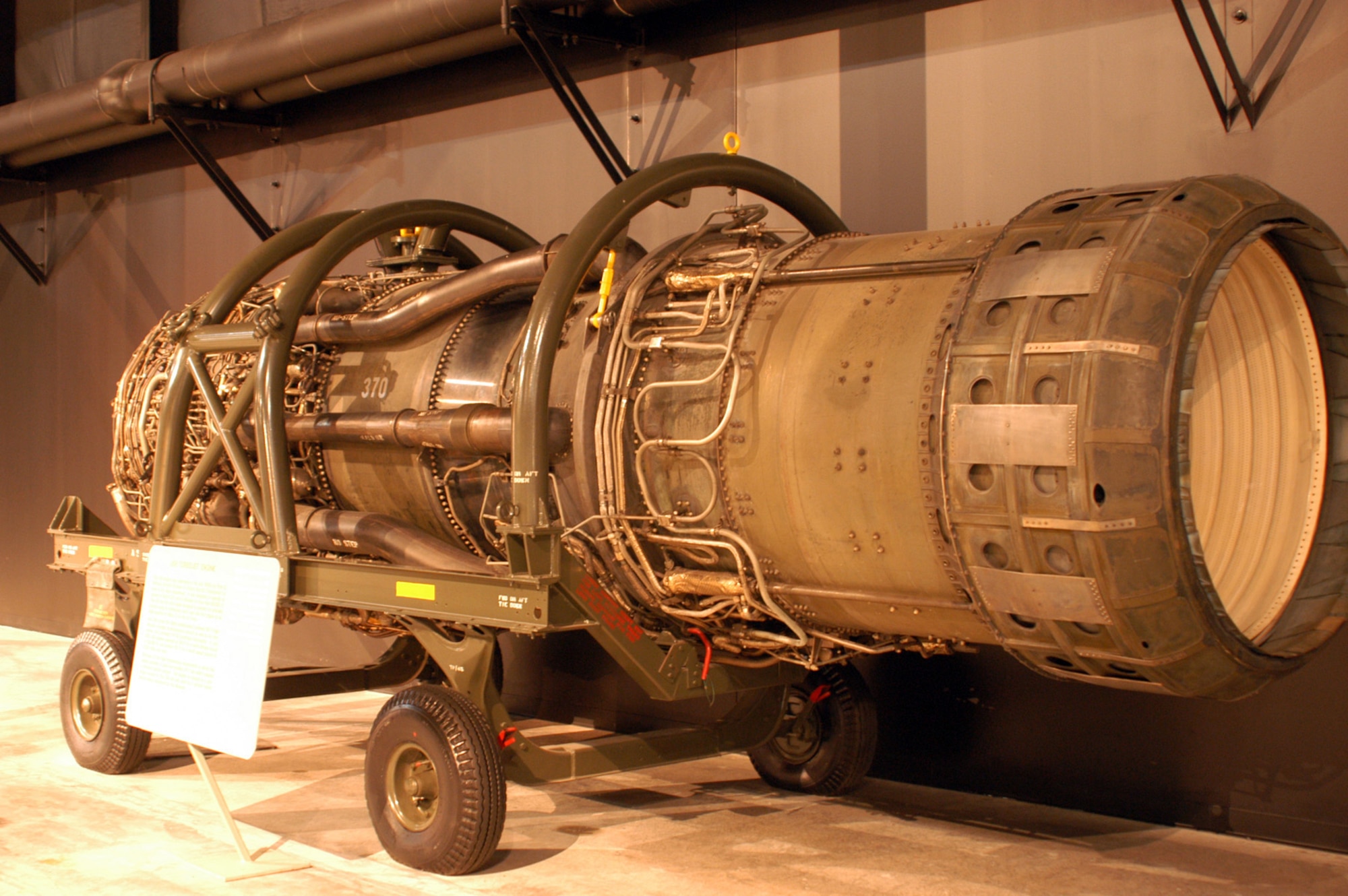

Pratt & Whitney J58 Turbojet


The J58 engine was developed in the late 1950s by Pratt & Whitney Aircraft Division of United Aircraft Corp. to meet a U.S. Navy requirement. It was designed to operate at speeds of Mach 3+ and at altitudes of more than 80,000 feet. The J58 was the first engine designed to operate for extended periods using its afterburner, and it was the first engine to be flight-qualified at Mach 3 for the U.S. Air Force.

Two J58s powered the highly-sophisticated Lockheed SR-71 high-altitude strategic reconnaissance aircraft as well as its forerunners, the Lockheed A-12 and YF-12A prototype interceptor. In July 1976, J58 engines powered an SR-71 to a world altitude record of 85,069 feet and another SR-71 to a world speed record of 2,193 mph.

TECHNICAL NOTES:
Model:
J58
Compressor: Nine-stage, axial flow, single speed
Turbine: Two-stage axial
Weight: Approx. 6,000 lbs.
Thrust: 32,500 lbs. with afterburner
Maximum operating altitude: above 80,000 ft.
