North American XB-70 Valkyrie

DAYTON, Ohio (05/2016) -- An overhead view of the fourth building aircraft at the National Museum of the United States Air Force. The fourth building includes more than 70 aircraft in four new galleries -- Presidential, Research & Development, Space and Global Reach. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio (05/2016) -- An overhead view of the fourth building aircraft at the National Museum of the United States Air Force. The fourth building includes more than 70 aircraft in four new galleries -- Presidential, Research & Development, Space and Global Reach. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio -- North American XB-70 Valkyrie at the National Museum of the United States Air Force. (U.S. Air Force photo)

DAYTON, Ohio -- North American XB-70 Valkyrie at the National Museum of the United States Air Force. (U.S. Air Force photo)

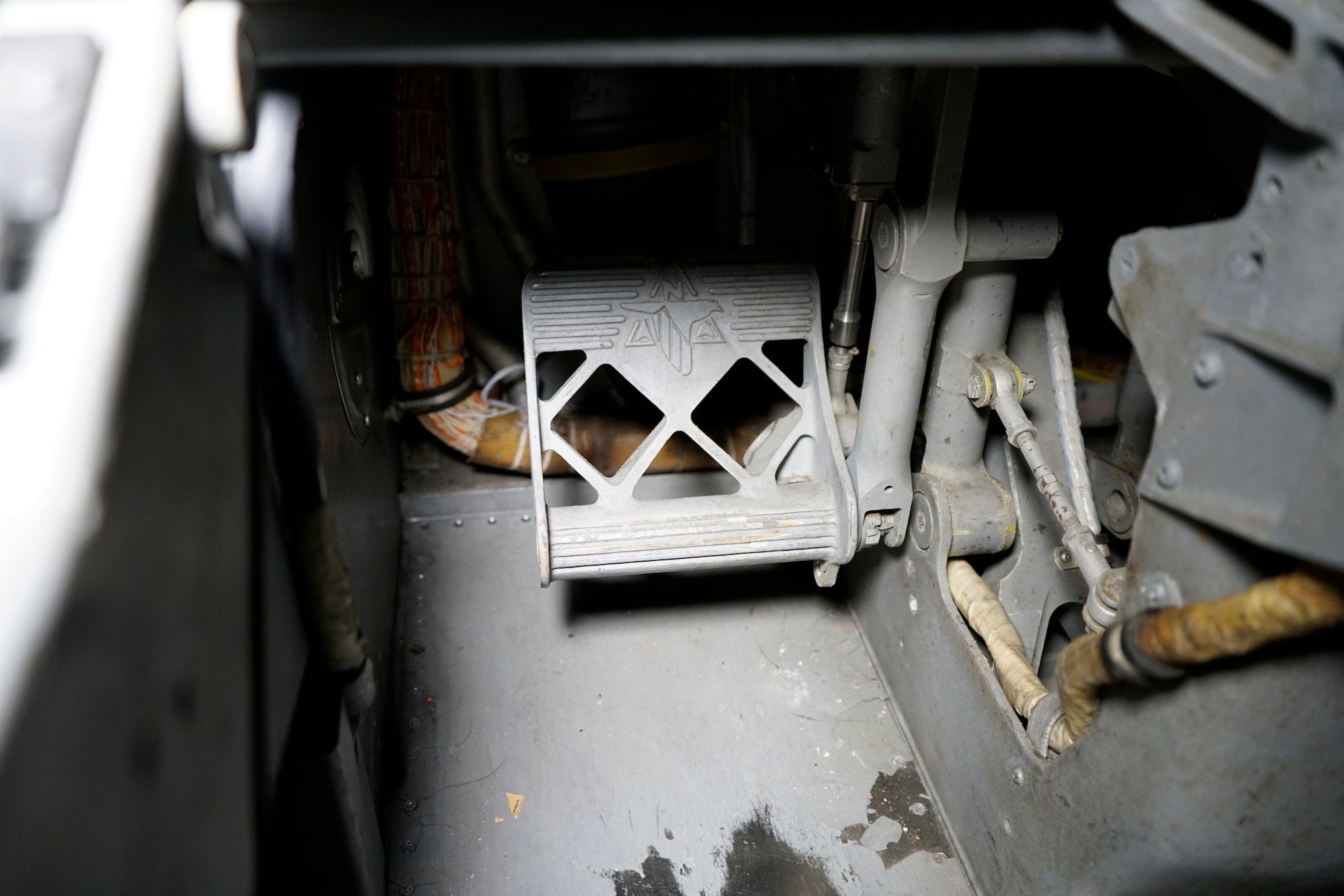

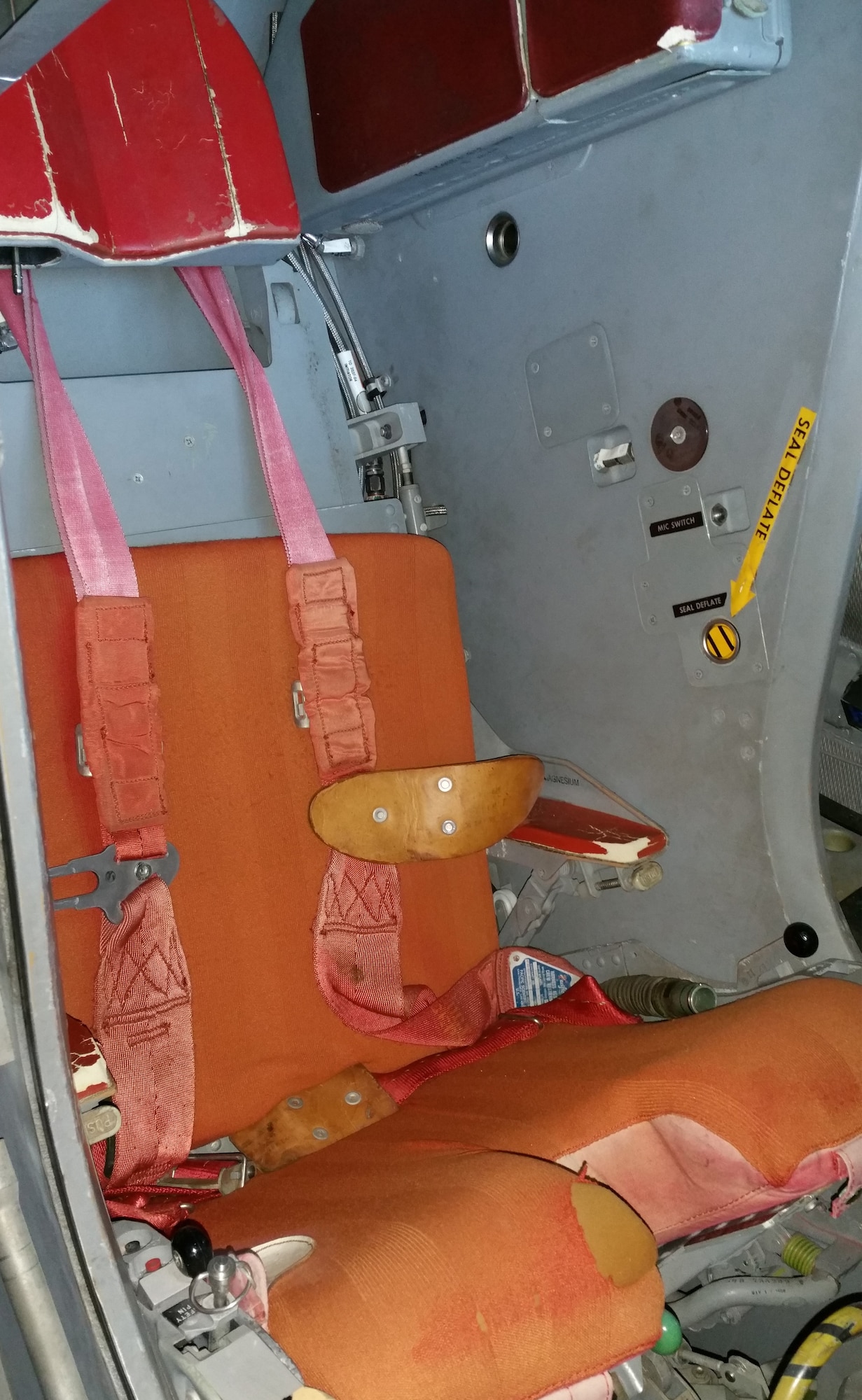

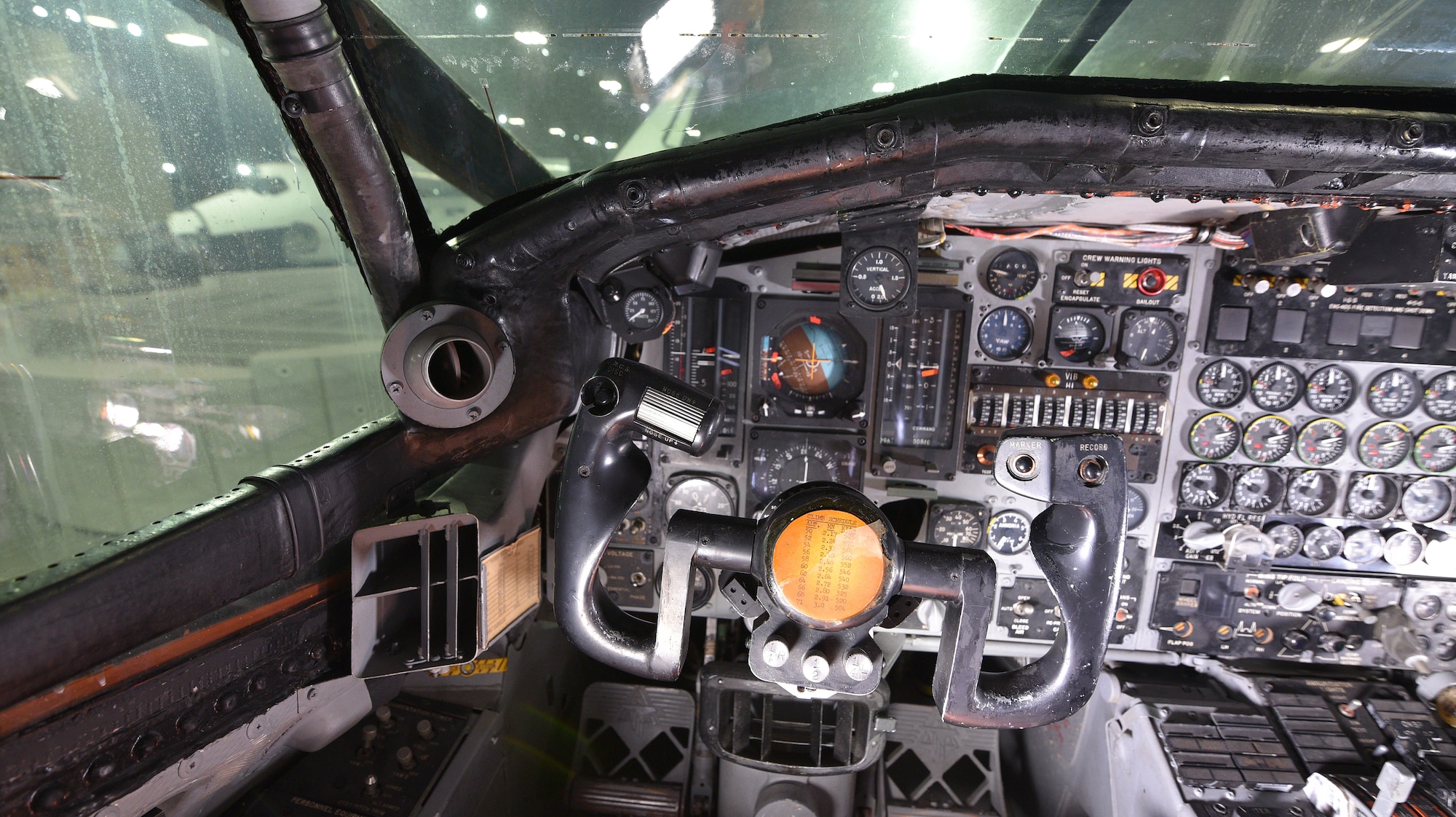

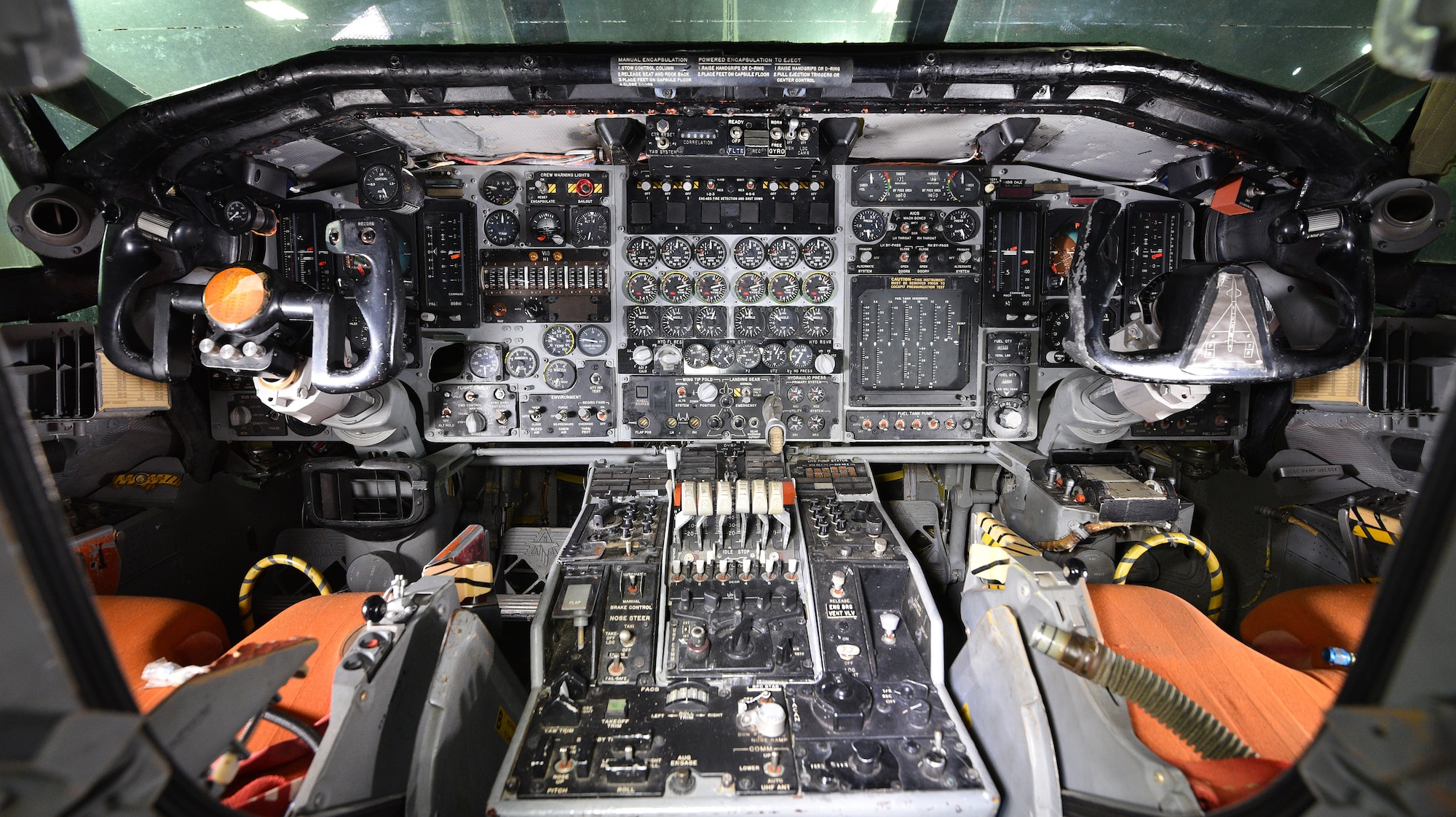

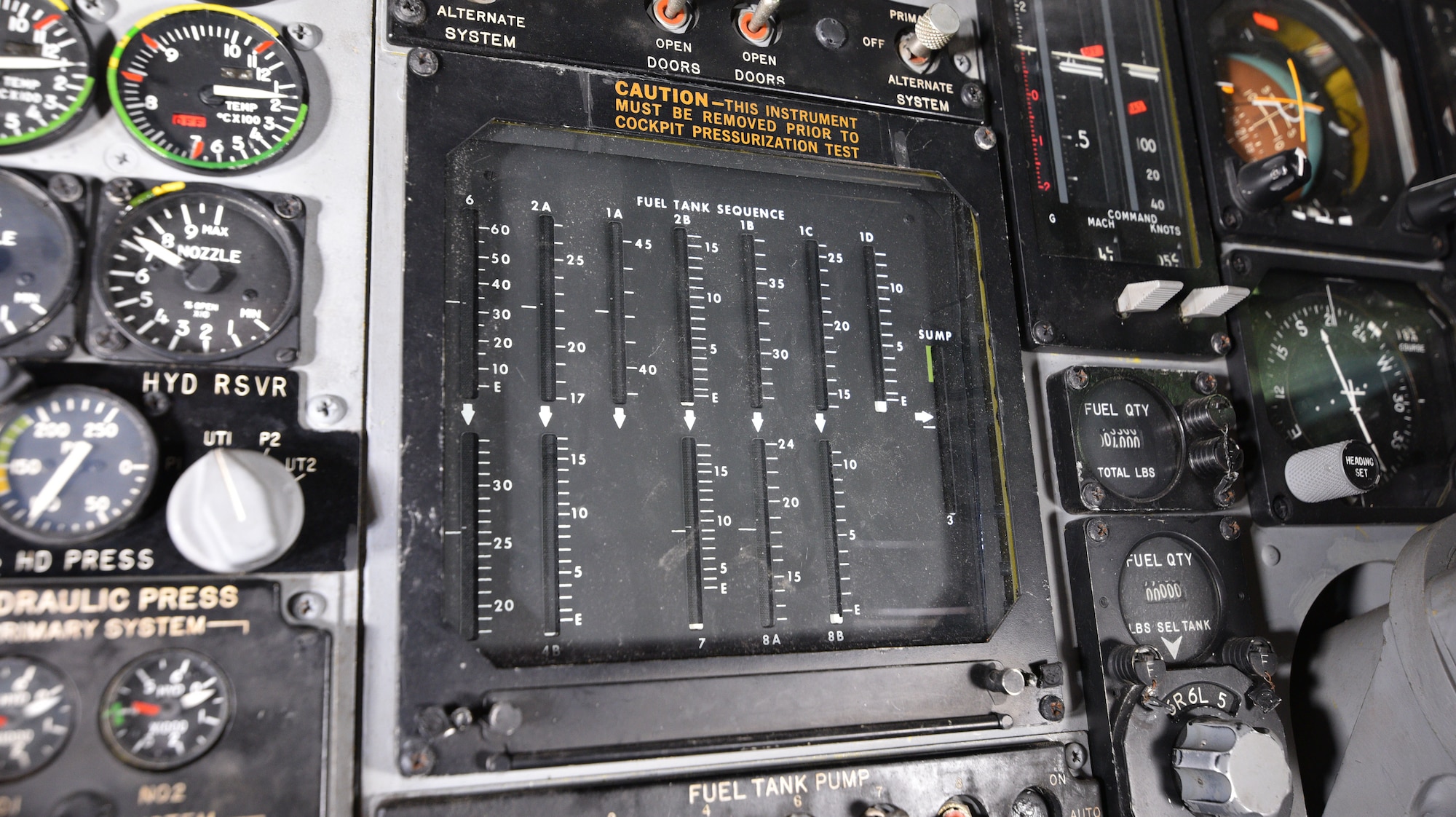

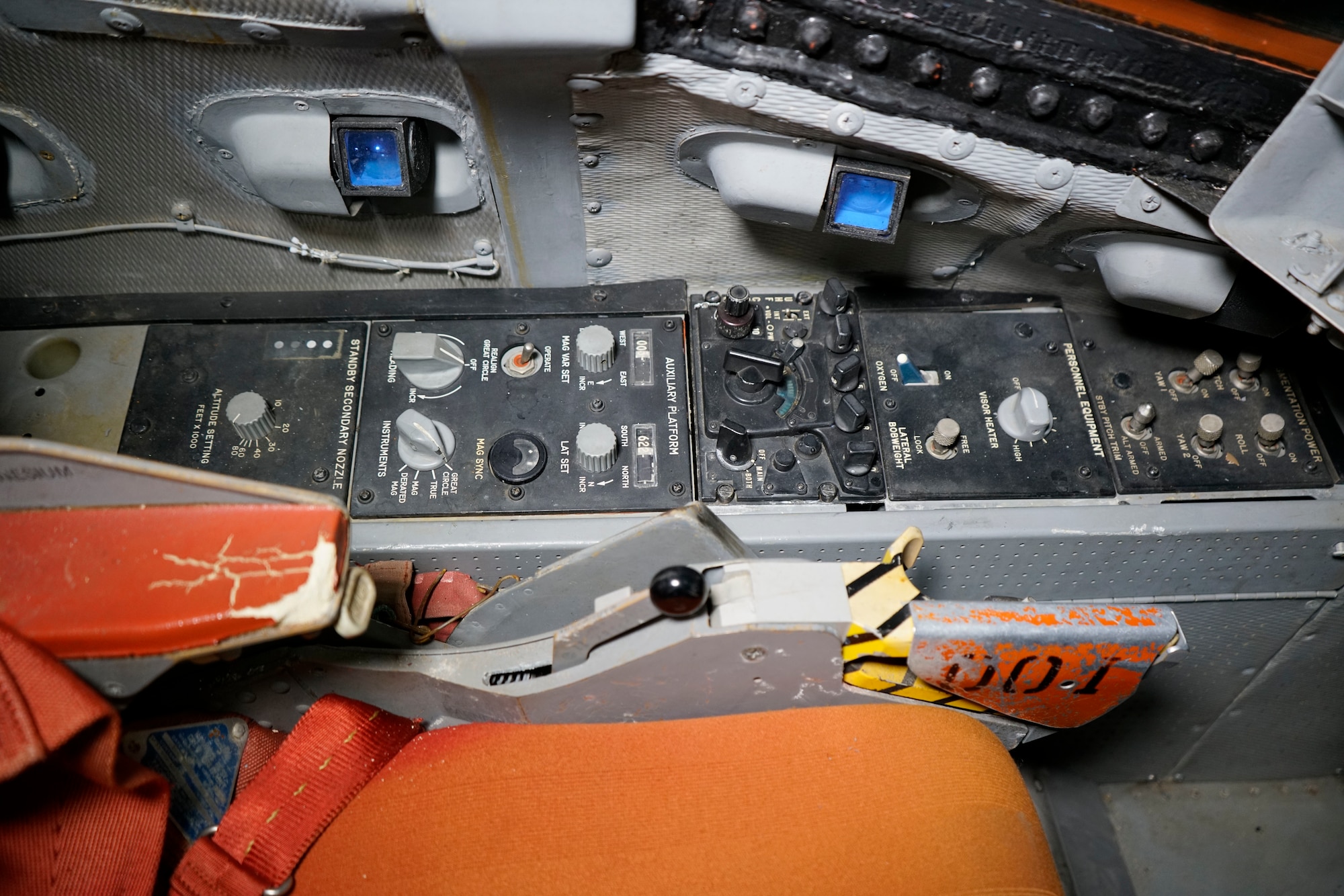

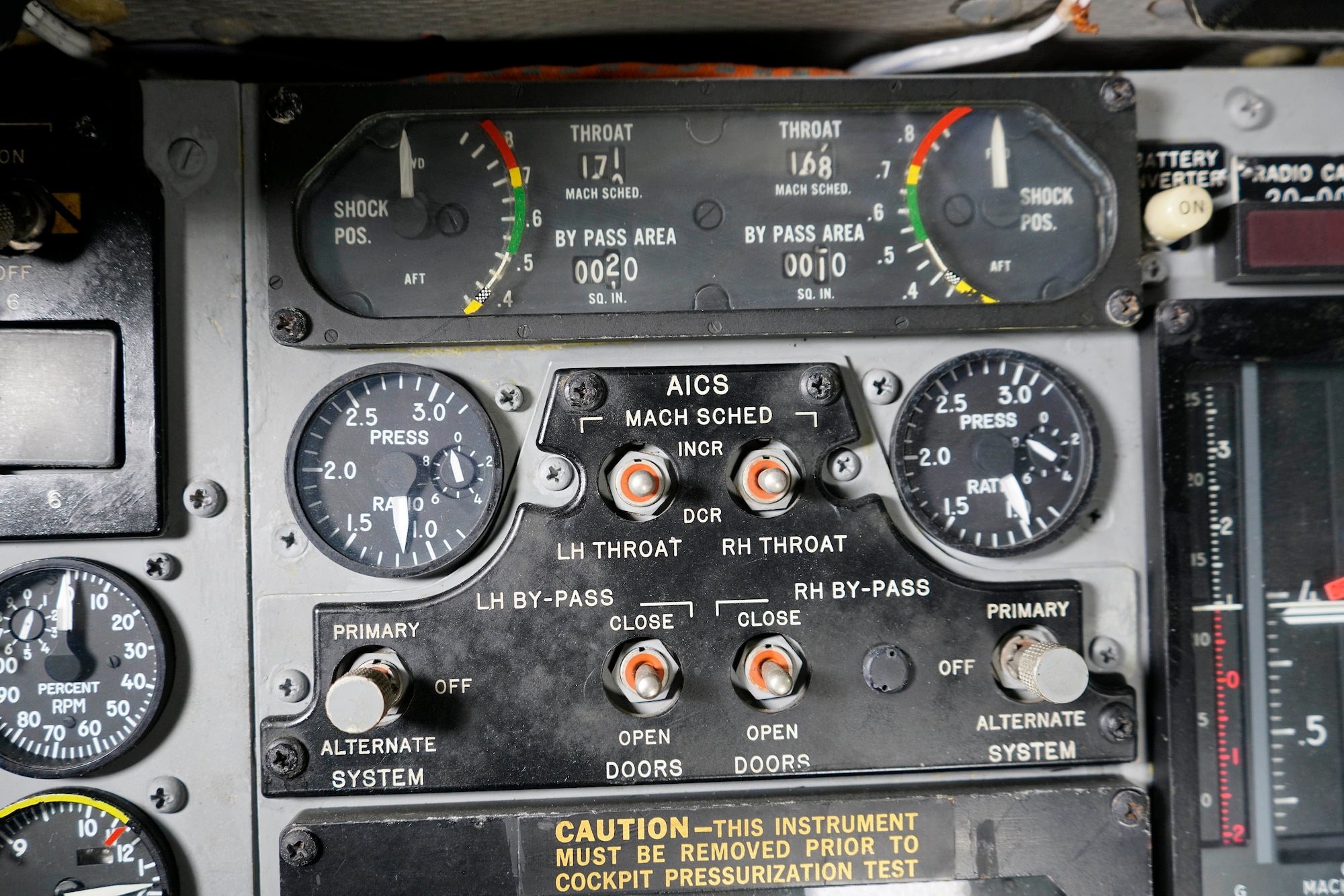

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)
PHOTO DETAILS  /   DOWNLOAD HI-RES 10 of 38

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)
PHOTO DETAILS  /   DOWNLOAD HI-RES 11 of 38

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)
PHOTO DETAILS  /   DOWNLOAD HI-RES 12 of 38

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)
PHOTO DETAILS  /   DOWNLOAD HI-RES 13 of 38

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)
PHOTO DETAILS  /   DOWNLOAD HI-RES 14 of 38

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)
PHOTO DETAILS  /   DOWNLOAD HI-RES 15 of 38

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)
PHOTO DETAILS  /   DOWNLOAD HI-RES 16 of 38

DAYTON, Ohio - North American XB-70 cockpit at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

North American XB-70 Valkyrie prior to its move to the new fourth building at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)
PHOTO DETAILS  /   DOWNLOAD HI-RES 17 of 38

North American XB-70 Valkyrie prior to its move to the new fourth building at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

North American XB-70 Valkyrie prior to its move to the new fourth building at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)
PHOTO DETAILS  /   DOWNLOAD HI-RES 18 of 38

North American XB-70 Valkyrie prior to its move to the new fourth building at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

North American XB-70 Valkyrie prior to its move to the new fourth building at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)
PHOTO DETAILS  /   DOWNLOAD HI-RES 19 of 38

North American XB-70 Valkyrie prior to its move to the new fourth building at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

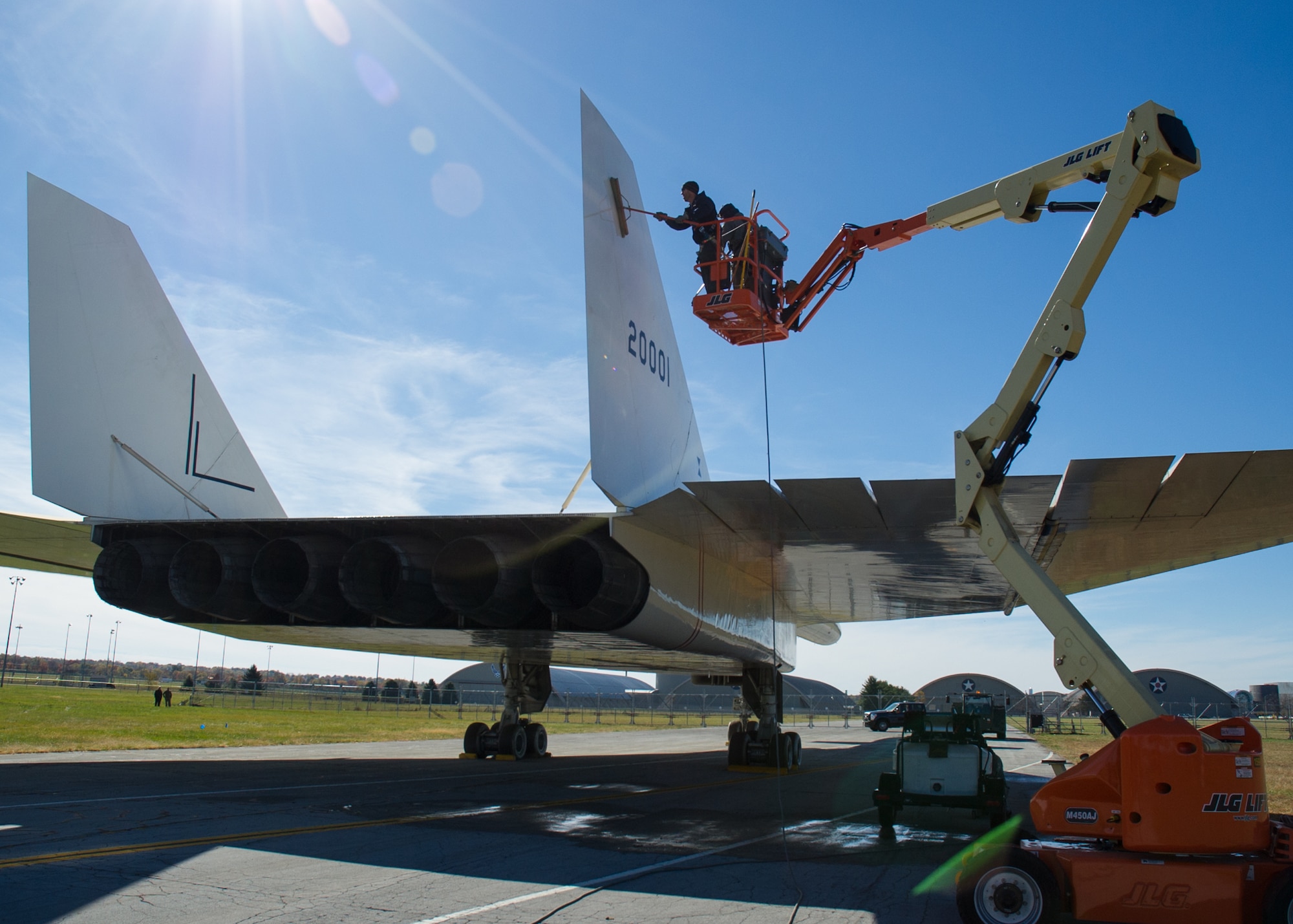

Restoration crews wash the North American XB-70 Valkyrie prior to its move to the new fourth building at the National Museum of the U.S. Air Force on Oct. 26, 2015. (U.S. Air Force photo by Ken LaRock)
PHOTO DETAILS  /   DOWNLOAD HI-RES 20 of 38

Restoration crews wash the North American XB-70 Valkyrie prior to its move to the new fourth building at the National Museum of the U.S. Air Force on Oct. 26, 2015. (U.S. Air Force photo by Ken LaRock)

Restoration crews wash the North American XB-70 Valkyrie prior to its move to the new fourth building at the National Museum of the U.S. Air Force on Oct. 26, 2015. (U.S. Air Force photo by Ken LaRock)
PHOTO DETAILS  /   DOWNLOAD HI-RES 21 of 38

Restoration crews wash the North American XB-70 Valkyrie prior to its move to the new fourth building at the National Museum of the U.S. Air Force on Oct. 26, 2015. (U.S. Air Force photo by Ken LaRock)

Restoration crews wash the North American XB-70 Valkyrie prior to its move to the new fourth building at the National Museum of the U.S. Air Force on Oct. 26, 2015. (U.S. Air Force photo by Ken LaRock)
PHOTO DETAILS  /   DOWNLOAD HI-RES 22 of 38

Restoration crews wash the North American XB-70 Valkyrie prior to its move to the new fourth building at the National Museum of the U.S. Air Force on Oct. 26, 2015. (U.S. Air Force photo by Ken LaRock)

Restoration crews wash the North American XB-70 Valkyrie prior to its move to the new fourth building at the National Museum of the U.S. Air Force on Oct. 26, 2015. (U.S. Air Force photo by Ken LaRock)
PHOTO DETAILS  /   DOWNLOAD HI-RES 23 of 38

Restoration crews wash the North American XB-70 Valkyrie prior to its move to the new fourth building at the National Museum of the U.S. Air Force on Oct. 26, 2015. (U.S. Air Force photo by Ken LaRock)

Restoration staff move the North American XB-70 Valkyrie into the new fourth building at the National Museum of the U.S. Air Force on Oct. 27, 2015. (U.S. Air Force photo by Will Haas)
PHOTO DETAILS  /   DOWNLOAD HI-RES 24 of 38

Restoration staff move the North American XB-70 Valkyrie into the new fourth building at the National Museum of the U.S. Air Force on Oct. 27, 2015. (U.S. Air Force photo by Will Haas)

Restoration staff move the North American XB-70 Valkyrie into the new fourth building at the National Museum of the U.S. Air Force on Oct. 27, 2015. (U.S. Air Force photo by Will Haas)
PHOTO DETAILS  /   DOWNLOAD HI-RES 25 of 38

Restoration staff move the North American XB-70 Valkyrie into the new fourth building at the National Museum of the U.S. Air Force on Oct. 27, 2015. (U.S. Air Force photo by Will Haas)

Restoration staff move the North American XB-70 Valkyrie into the new fourth building at the National Museum of the U.S. Air Force on Oct. 27, 2015. (U.S. Air Force photo by Will Haas)
PHOTO DETAILS  /   DOWNLOAD HI-RES 26 of 38

Restoration staff move the North American XB-70 Valkyrie into the new fourth building at the National Museum of the U.S. Air Force on Oct. 27, 2015. (U.S. Air Force photo by Will Haas)

Restoration staff move the North American XB-70 Valkyrie into the new fourth building at the National Museum of the U.S. Air Force on Oct. 27, 2015. (U.S. Air Force photo by Don Popp)
PHOTO DETAILS  /   DOWNLOAD HI-RES 27 of 38

Restoration staff move the North American XB-70 Valkyrie into the new fourth building at the National Museum of the U.S. Air Force on Oct. 27, 2015. (U.S. Air Force photo by Don Popp)

Restoration staff move the North American XB-70 Valkyrie into the new fourth building at the National Museum of the U.S. Air Force on Oct. 27, 2015. (U.S. Air Force photo by Don Popp)
PHOTO DETAILS  /   DOWNLOAD HI-RES 28 of 38

Restoration staff move the North American XB-70 Valkyrie into the new fourth building at the National Museum of the U.S. Air Force on Oct. 27, 2015. (U.S. Air Force photo by Don Popp)

Restoration staff move the North American XB-70 Valkyrie into the new fourth building at the National Museum of the U.S. Air Force on Oct. 27, 2015. (U.S. Air Force photo by Don Popp)
PHOTO DETAILS  /   DOWNLOAD HI-RES 29 of 38

Restoration staff move the North American XB-70 Valkyrie into the new fourth building at the National Museum of the U.S. Air Force on Oct. 27, 2015. (U.S. Air Force photo by Don Popp)

Restoration staff move the North American XB-70 Valkyrie into the new fourth building at the National Museum of the U.S. Air Force on Oct. 27, 2015. (U.S. Air Force photo by Don Popp)
PHOTO DETAILS  /   DOWNLOAD HI-RES 30 of 38

Restoration staff move the North American XB-70 Valkyrie into the new fourth building at the National Museum of the U.S. Air Force on Oct. 27, 2015. (U.S. Air Force photo by Don Popp)

Restoration staff move the North American XB-70 Valkyrie into the new fourth building at the National Museum of the U.S. Air Force on Oct. 27, 2015. This photo shows the current view from the balcony of the fourth building. (U.S. Air Force photo by Doug Lantry)
PHOTO DETAILS  /   DOWNLOAD HI-RES 31 of 38

Restoration staff move the North American XB-70 Valkyrie into the new fourth building at the National Museum of the U.S. Air Force on Oct. 27, 2015. This photo shows the current view from the balcony of the fourth building. (U.S. Air Force photo by Doug Lantry)

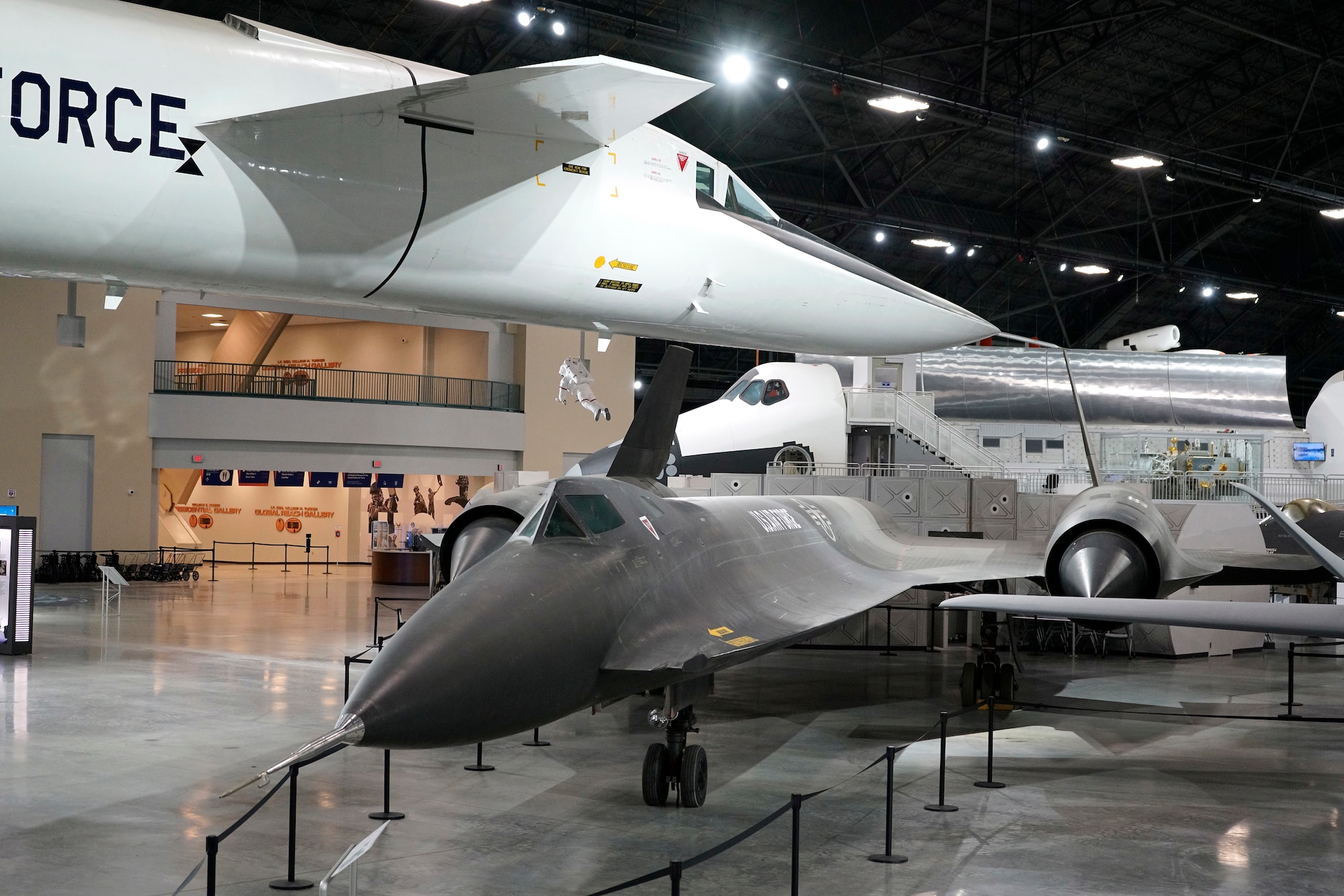

General view of the North American XB-70 Valkyrie and the Lockheed YF-12A in the Research and Development Gallery in the museum's fourth building. Also pictured are the North American X-15A-2 and the Space Shuttle Exhibit on display in the Space Gallery at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)
PHOTO DETAILS  /   DOWNLOAD HI-RES 32 of 38

General view of the North American XB-70 Valkyrie and the Lockheed YF-12A in the Research and Development Gallery in the museum's fourth building. Also pictured are the North American X-15A-2 and the Space Shuttle Exhibit on display in the Space Gallery at the National Museum of the U.S. Air Force. (U.S. Air Force photo by Ken LaRock)

North American XB-70A Valkyrie in flight (S/N 62-0001). Note the drooped wings. (U.S. Air Force photo)
PHOTO DETAILS  /   DOWNLOAD HI-RES 33 of 38

The sleek Valkyrie took advantage of "compression lift," where the shock wave generated by the airframe at supersonic speed supports part of the airplane's weight. The XB-70A could also droop its wingtips as much as 65 degrees for additional stability at high speeds. (U.S. Air Force photo)

The Valkyrie’s airframe was built with advanced techniques and materials to reduce weight and to withstand high temperatures from aerodynamic heating at high speed. (U.S. Air Force photo)
PHOTO DETAILS  /   DOWNLOAD HI-RES 34 of 38

The Valkyrie’s airframe was built with advanced techniques and materials to reduce weight and to withstand high temperatures from aerodynamic heating at high speed. (U.S. Air Force photo)

The Valkyrie’s six large turbojet engines together provided an impressive 180,000 pounds of thrust. (U.S. Air Force photo)
PHOTO DETAILS  /   DOWNLOAD HI-RES 35 of 38

The Valkyrie’s six large turbojet engines together provided an impressive 180,000 pounds of thrust. (U.S. Air Force photo)

The North American XB-70 Valkyrie moves from the Air Force Museum at Patterson Field down State Route 444 to the new home at historic Wright Field during 1970-71.
PHOTO DETAILS  /   DOWNLOAD HI-RES 36 of 38

The North American XB-70 Valkyrie moves from the Air Force Museum at Patterson Field down State Route 444 to the new home at historic Wright Field during 1970-71.

The North American XB-70 Valkyrie moves from the Air Force Museum at Patterson Field down State Route 444 to the new home at historic Wright Field during 1970-71. (U.S. Air Force photo)
PHOTO DETAILS  /   DOWNLOAD HI-RES 37 of 38

The North American XB-70 Valkyrie moves from the Air Force Museum at Patterson Field down State Route 444 to the new home at historic Wright Field during 1970-71. (U.S. Air Force photo)

The North American XB-70 Valkyrie moves from the Air Force Museum at Patterson Field down State Route 444 to the new home at historic Wright Field during 1970-71. (U.S. Air Force photo)
PHOTO DETAILS  /   DOWNLOAD HI-RES 38 of 38

The North American XB-70 Valkyrie moves from the Air Force Museum at Patterson Field down State Route 444 to the new home at historic Wright Field during 1970-71. (U.S. Air Force photo)

The futuristic XB-70A was originally conceived in the 1950s as a high-altitude, nuclear strike bomber that could fly at Mach 3 (three times the speed of sound) -- any potential enemy would have been unable to defend against such a bomber.

By the early 1960s, however, new Surface-to-Air Missiles (SAMs) threatened the survivability of high-speed, high-altitude bombers. Less costly, nuclear-armed ICBMs (Intercontinental Ballistic Missiles) were also entering service. As a result, in 1961, the expensive B-70 bomber program was canceled before any Valkyries had been completed or flown.

Even so, the USAF bought two XB-70As to test aerodynamics, propulsion and other characteristics of large supersonic aircraft. The first XB-70A, on display here, flew in September 1964, and it achieved Mach 3 flight in October 1965. The second Valkyrie first flew in July 1965, but in June 1966, it was destroyed following an accidental mid-air collision. The third Valkyrie was not completed.

The first XB-70A airplane continued to fly and generate valuable test data in the research program until it came to the museum in 1969.

TECHNICAL NOTES:
Engines:
Six General Electric YJ93s of 30,000 lbs. thrust each with afterburner
Maximum speed: 2,056 mph (Mach 3.1) at 73,000 feet
Range: 4,288 miles
Service ceiling: 77,350 feet
Length: 185 feet, 10 inches
Height: 30 feet, 9 inches
Weight: 534,700 lbs. loaded


XB-70A Valkyrie: Mach 3 Marvel

Conceived in the 1950s as an intercontinental strategic nuclear bomber, the futuristic Valkyrie instead became a unique test aircraft in the 1960s.

XB-70 in flight



















XB-70 in flight





























Higher and Faster: B-70 Bomber Concept

In the mid-1950s, the USAF wanted a radically advanced new bomber that could fly much faster (Mach 3+ or 2,000 mph) and higher (70,000+ feet) than the B-52 it would replace.

The revolutionary B-70 design promised to meet this demanding requirement.  It would be expensive, however, and its survival could not be guaranteed against future Soviet defenses.  In 1961—before a prototype was built—the B-70 bomber program was canceled.

black and white illustration of XB-70 in flight







Late 1950s conceptual illustration of the B-70 bomber—note that the wingtips do not fold down.





F-108 Rapier:  Mach 3 Interceptor

North American developed the Mach 3 F-108 Rapier to protect the US from future supersonic Soviet bombers.  The design shared XB-70 components and materials like its ejection seat, engine, and honeycomb structure.  The USAF canceled the Rapier in 1959 due to projected high costs.

Illustration showing the F-108 layout













Illustrations from a 1958 Air Force document showing the F-108’s layout.  The Rapier program was canceled before any prototypes were built.



XB-70A: Supersonic Test Vehicle

Although the bomber program was canceled, the USAF ordered two XB-70As (AV-1 and AV-2) as pure test aircraft.  Between 1964-1969, they carried out 129 flights, generating valuable data and knowledge regarding large supersonic aircraft.

The Museum’s XB-70A (AV-1) was the first one built and also the first Valkyrie to fly at Mach 3 (about 2,000 mph).  After this flight, however, it was limited to Mach 2.5 due to structural concerns.

The second XB-70A (AV-2) flew multiple times at Mach 3, including a sustained, 32-minute, Mach 3 flight in May 1966.  Valkyrie AV-2 was lost in June 1966 after an F-104 collided with it in mid-air.  F-104 pilot Joe Walker (NASA) and XB-70A copilot Maj Carl Cross (USAF) died.  North American pilot Al White ejected from the XB-70A, but was badly injured.

black and white picture of wing of XB-70













Paint flaked off XB-70 AV-1 during its early flights.  North American solved the problem by repainting AV-1 with a thinner coat.



picture of XB-70 rolling out of hangar









The second XB-70A (AV-2) pictured rolling out of its Palmdale, CA, factory in May 1965.  The Museum’s XB-70A (AV-1) was completed in May 1964.


XB-70A Test Pilots

Only seven pilots flew the Valkyrie:
-Al White (North American Chief Test Pilot)
-Col Joe Cotton (USAF)
-Lt Col Fitzhugh “Fitz” Fulton (USAF/NASA)
-Van Shepard (North American)
-Maj Carl Cross (USAF)
-Don Mallick (NASA)
-Lt Col Emil “Ted” Sturmthal (USAF)

picture of Lt Col Fulton  Lt Col Fitzhugh “Fitz” Fulton made 63 flights and had the most flight time (124 hours) in the XB-70A.

















picture of Col Cottong  Col Joe Cotton made 62 Valkyrie flights, including copiloting AV-1 on its Mach 3 flight in October 1965.

















picture of Al White  North American Chief Test Pilot Al White pictured with an XB-70A ejection seat.  White made the most XB-70A flights, 67, including piloting AV-1 on its Mach 3 flight in October 1965.















NASA and the Supersonic Transport (SST) Program

The US government encouraged supersonic airliner progress with the National Supersonic Transport program.  NASA used XB-70A AV-1 as its primary aircraft to investigate SST operations.

In 1971, the American SST program was canceled, in part due to the problem of sonic booms on the ground—sonic booms are loud, explosive noises caused by aircraft flying faster than the speed of sound.

Later in the 1970s, however, the supersonic British/French Concorde entered commercial service and the Soviet Union briefly operated the supersonic Tu-144.

picture of XB-70  taking off  The USAF transferred XB-70A AV-1 to NASA in 1967 in support of the National Supersonic Transport Program.









illustration showing research partners for SST Developmentillustration showing background programs to develop the XB-70













Illustrations from a 1967 report showing the significant role of the XB-70A in the SST program.





Test Vehicle to Museum Artifact

picture of XB-70 landing  XB-70A AV-1 touching down on its last flight on February 4, 1969, when Fitzhugh “Fitz” Fulton and Emil “Ted” Sturmthal delivered it to the Air Force Museum (now the National Museum of the USAF).









picture of XB-70 at Wright-Patterson flight line  XB-70A AV-1 shortly after landing at Wright-Patterson AFB.  The Museum’s Valkyrie was later repainted to its appearance in USAF service in the mid-1960s.

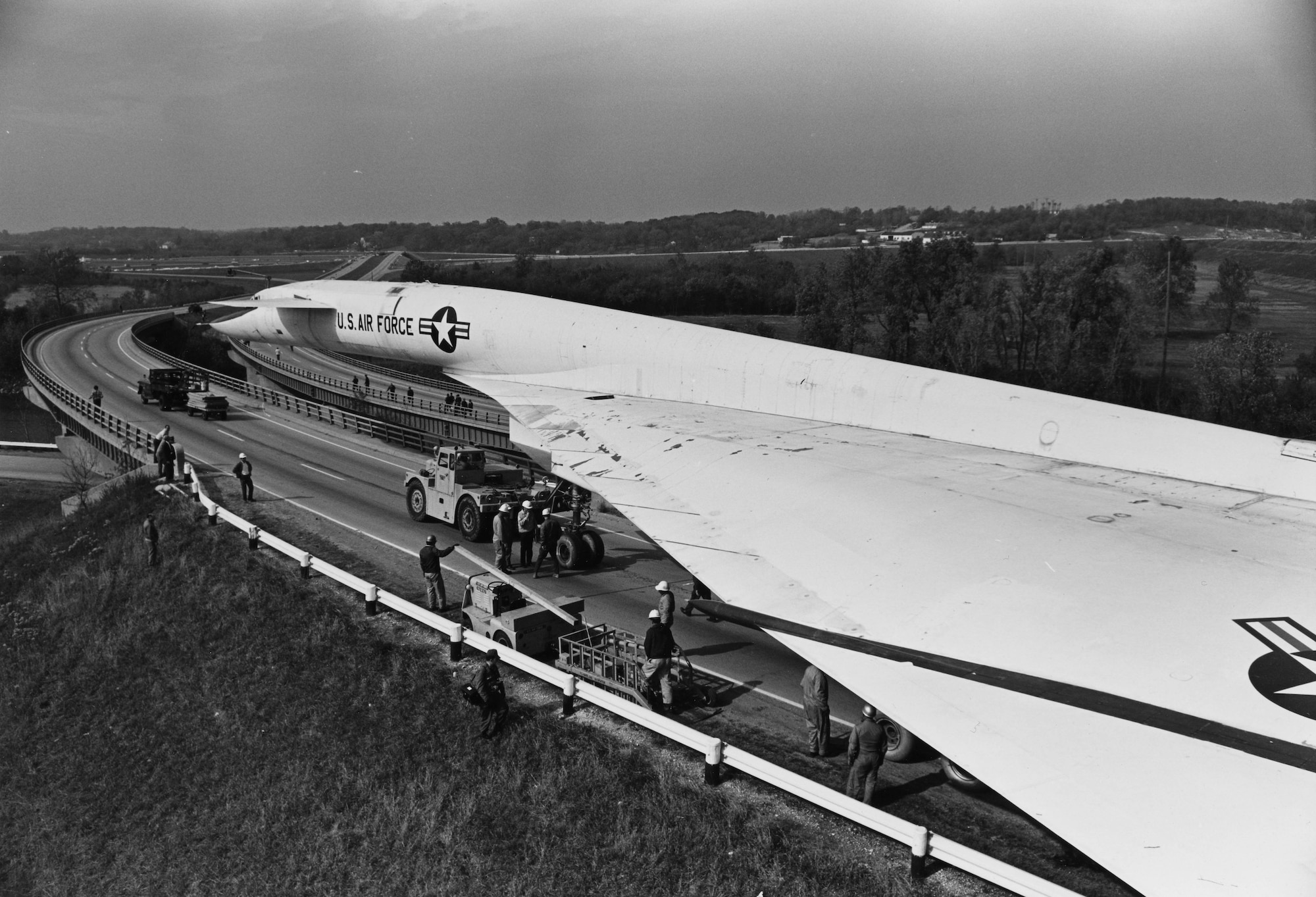

picture of aircraft being towed down highway  In 1971, XB-70A AV-1 was moved to the new Museum location several miles away.  Museum staff carefully towed it over a narrow overpass on State Route 444.
