Northrop B-2 Spirit

Published May 28, 2015

PHOTO DETAILS / DOWNLOAD HI-RES 1 of 7

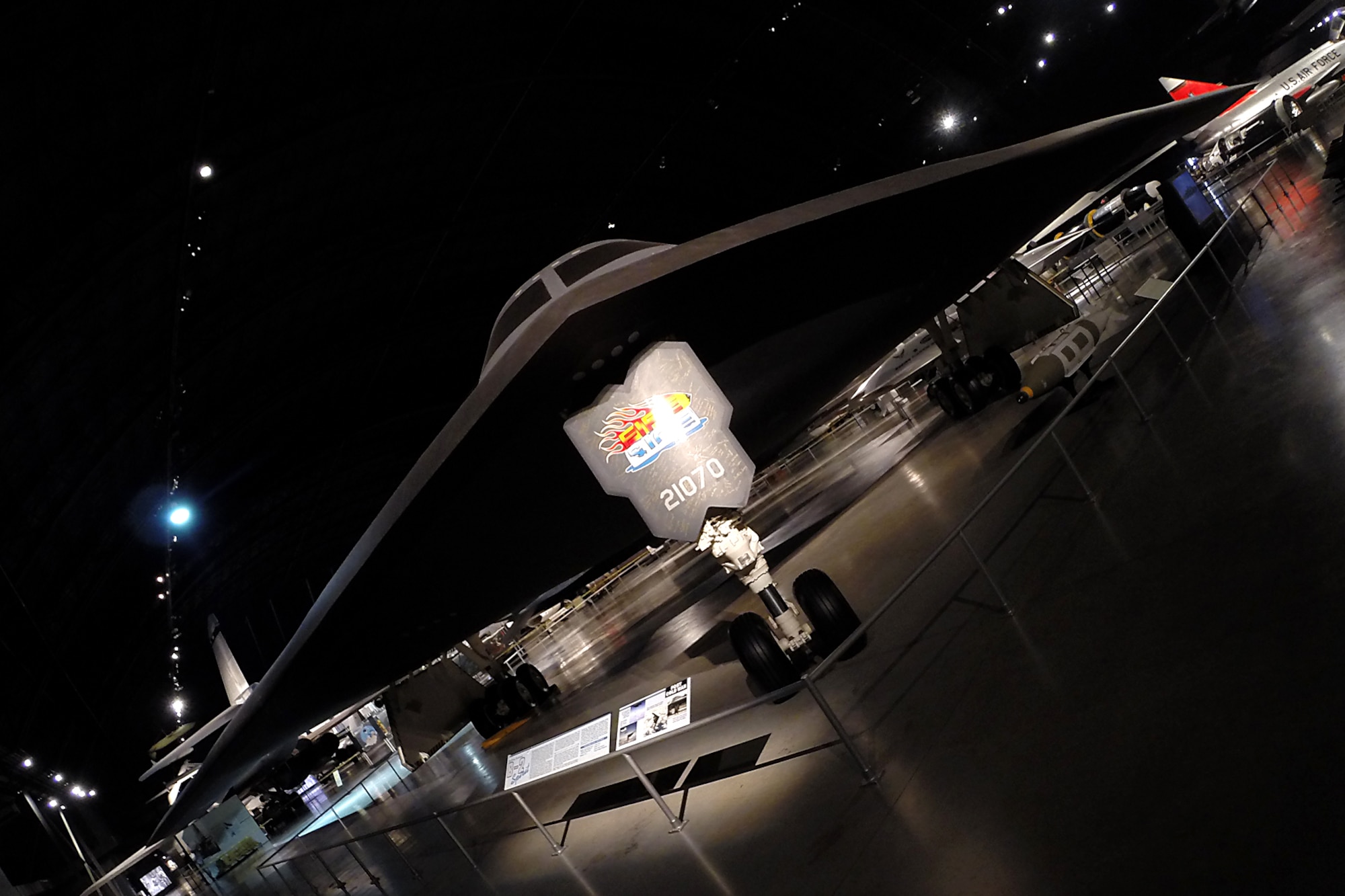

DAYTON, Ohio -- Northrop B-2 Spirit at the National Museum of the United States Air Force. (U.S. Air Force photo)

PHOTO DETAILS / DOWNLOAD HI-RES 2 of 7

DAYTON, Ohio -- Northrop B-2 Spirit at the National Museum of the United States Air Force. (U.S. Air Force photo)

PHOTO DETAILS / DOWNLOAD HI-RES 3 of 7

DAYTON, Ohio -- Close-up of signatures on the Northrop B-2 in the Cold War Gallery at the National Museum of the United States Air Force. (U.S. Air Force photo)

PHOTO DETAILS / DOWNLOAD HI-RES 4 of 7

DAYTON, Ohio - Northrop B-2 Spirit in the Cold War Gallery at the National Museum of the United States Air Force. (U.S. Air Force photo)

PHOTO DETAILS / DOWNLOAD HI-RES 5 of 7

DAYTON, Ohio -- Northrop B-2 Spirit in the Cold War Gallery at the National Museum of the United States Air Force. (U.S. Air Force photo)

PHOTO DETAILS / DOWNLOAD HI-RES 6 of 7

Northrop B-2 Spirit in the Cold War Gallery at the National Museum of the United States Air Force. (U.S. Air Force photo)

PHOTO DETAILS / DOWNLOAD HI-RES 7 of 7

DAYTON, Ohio -- Northrop B-2 Spirit in the Cold War Gallery at the National Museum of the United States Air Force. (U.S. Air Force photo)

The global spread of sophisticated air defense systems in the 1980s threatened the USAF's ability to destroy an enemy's most valued targets. To overcome this threat, the USAF incorporated the revolutionary low-observable, or "stealth," technology into a long-range bomber capable of delivering large payloads of conventional or nuclear weapons. The Northrop Grumman B-2 Spirit merged the high aerodynamic efficiency of the "flying wing" design with composite materials, special coatings and classified stealth technologies. As a result, the B-2 became virtually invisible to even the most sophisticated air defense radar systems.

The public first saw the highly classified B-2 on Nov. 22, 1988, when it rolled out of its hangar at Air Force Plant 42 in Palmdale, Calif. The B-2 first flew on July 17, 1989, at Palmdale, Calif., and Northrop Grumman delivered the first operational B-2 on Dec. 17, 1993. Based at Whiteman Air Force Base, Mo., the B-2 soon demonstrated its combat capabilities in Operation Allied Force over Serbia in 1999, Operation Enduring Freedom over Afghanistan in 2001, and Operation Iraqi Freedom over Iraq in 2003.

With a crew of only two -- the pilot in the left seat and the mission commander in the right -- a typical combat mission consisted of a non-stop flight from Whiteman Air Force Base to the target and back. During these missions, normally lasting more than 30 hours and requiring numerous aerial refuelings, each B-2 delivered up to 40,000 pounds of precision weapons.

Structural Testing
Northrop Grumman constructed two additional aircraft without engines or instruments for fatigue testing. On the second of those test aircraft (the B-2 on display at the museum), engineers attached computer-controlled, hydraulically driven plates along the airframe to simulate all flying conditions. They calculated that the structure would reach 150 percent of the design specifications, but the wing withstood stresses over 161 percent before it finally cracked.

Early production B-2s also underwent extensive environmental testing. In 1993 the Spirit of Ohio (S/N 82-1070) endured more than 1,000 hours of extensive temperature testing at the McKinley Climatic Laboratory at Eglin Air Force Base, Fla. It withstood temperatures ranging from -65 to 120 degrees Fahrenheit, rain and high humidity. To verify the test results outside the laboratory, the Spirit of Ohio deployed to Eielson Air Force Base, Alaska, in March 1996 for further cold climate testing. To signify these tests, the technicians painted the "Fire and Ice" artwork on the nose landing gear panel and signed it. Presented to the museum in 1999, that nose panel was installed on the museum's B-2 during restoration.

TECHNICAL NOTES:
Engines: Four General Electric F118-GE-100 turbofans of 17,300 lbs. thrust each
Wingspan: 172 ft.
Length: 69 ft.
Height: 17 ft.
Speed: High subsonic
Takeoff weight: 336,500 lbs.
