McDonnell Douglas F-4C Phantom II

DAYTON, Ohio -- McDonnell Douglas F-4C Phantom II at the National Museum of the United States Air Force. (U.S. Air Force photo)

DAYTON, Ohio -- McDonnell Douglas F-4C Phantom II at the National Museum of the United States Air Force. (U.S. Air Force photo)

DAYTON, Ohio -- McDonnell Douglas F-4C Phantom II at the National Museum of the United States Air Force. (U.S. Air Force photo)

DAYTON, Ohio -- McDonnell Douglas F-4C Phantom II at the National Museum of the United States Air Force. (U.S. Air Force photo)

DAYTON, Ohio -- McDonnell Douglas F-4C Phantom II in the Southeast Asia War Gallery at the National Museum of the United States Air Force. (U.S. Air Force photo)

DAYTON, Ohio -- McDonnell Douglas F-4C Phantom II in the Southeast Asia War Gallery at the National Museum of the United States Air Force. (U.S. Air Force photo)

DAYTON, Ohio -- McDonnell Douglas F-4C Phantom II in the Southeast Asia War Gallery at the National Museum of the United States Air Force. (U.S. Air Force photo)

DAYTON, Ohio -- McDonnell Douglas F-4C Phantom II in the Southeast Asia War Gallery at the National Museum of the United States Air Force. (U.S. Air Force photo)

DAYTON, Ohio -- McDonnell Douglas F-4C Phantom II in the Southeast Asia War Gallery at the National Museum of the United States Air Force. (U.S. Air Force photo)

DAYTON, Ohio -- McDonnell Douglas F-4C Phantom II in the Southeast Asia War Gallery at the National Museum of the United States Air Force. (U.S. Air Force photo)

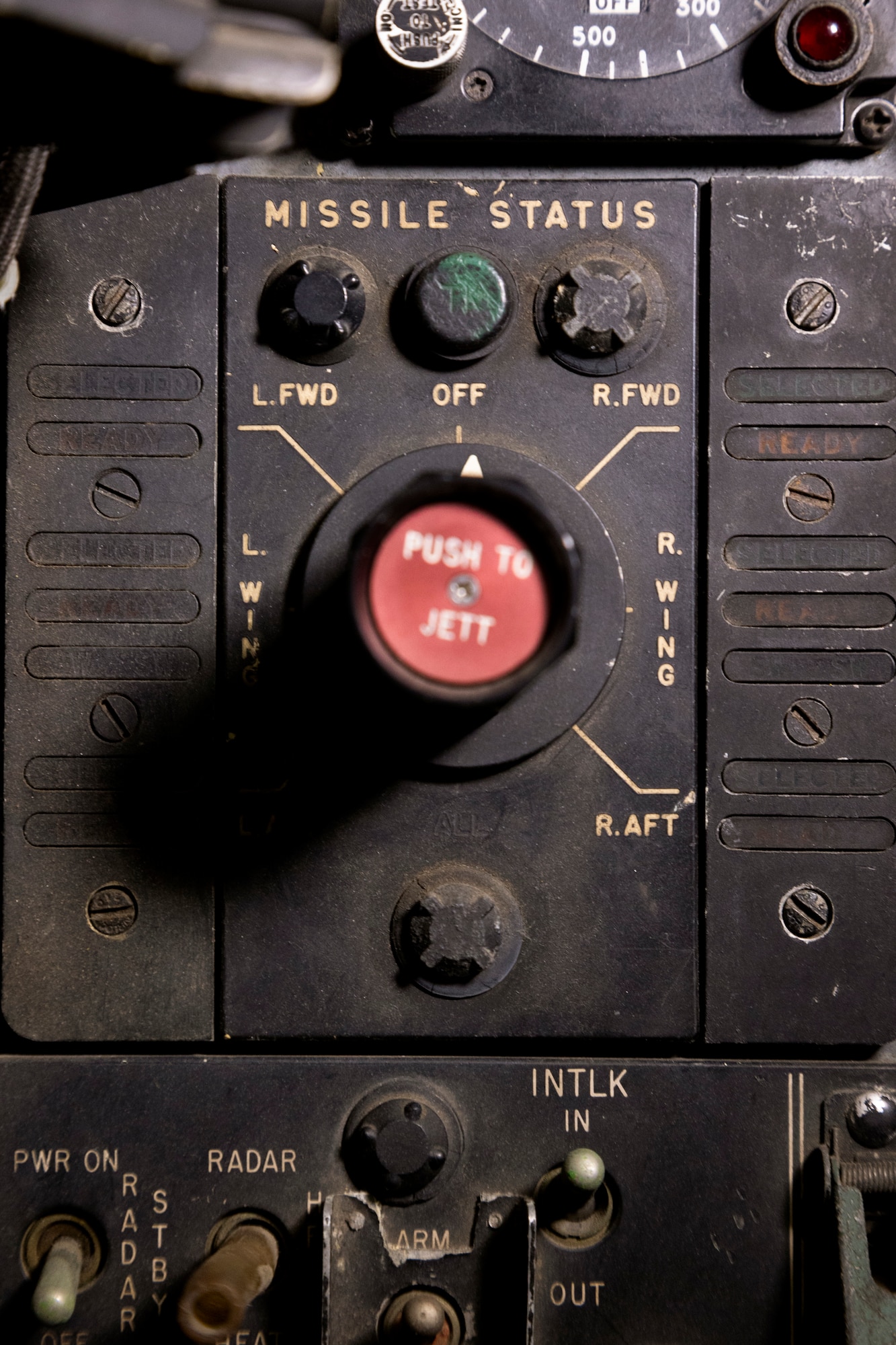

DAYTON, Ohio -- McDonnell Douglas F-4C cockpit at the National Museum of the United States Air Force. (U.S. Air Force photo)

DAYTON, Ohio -- McDonnell Douglas F-4C cockpit at the National Museum of the United States Air Force. (U.S. Air Force photo)

DAYTON, Ohio -- McDonnell Douglas F-4C cockpit at the National Museum of the United States Air Force. (U.S. Air Force photo)

DAYTON, Ohio -- McDonnell Douglas F-4C cockpit at the National Museum of the United States Air Force. (U.S. Air Force photo)





First flown in May 1958, the Phantom II originally was developed for U.S. Navy fleet defense. The U.S. Air Force's first version, the F-4C, made its first flight in May 1963, and production deliveries began six months later. Phantom II production ended in 1979 after over 5,000 had been built -- more than 2,600 for the USAF, about 1,200 for the U.S. Navy and Marine Corps, and the rest for friendly foreign nations.

In 1965 the USAF sent its first F-4Cs to Southeast Asia, where they flew air-to-air missions against North Vietnamese fighters as well as attacking ground targets. The first USAF pilot to score four combat victories with F-4s in Southeast Asia was Col. Robin Olds, a World War II ace. The aircraft on display is the one in which Col. Olds, the pilot, and Lt. Stephen Croker, the weapons system officer, destroyed two MiG-17s in a single day, May 20, 1967.

In its air-to-ground role, the F-4C could carry twice the normal load of a WWII B-17. The armament loaded on the aircraft on display is a typical configuration for an F-4C in 1967. It consists of four AIM-7E and four AIM-9B air-to-air missiles, and eight 750-pound Mk 117 bombs. The aircraft also carries two external fuel tanks on the outboard pylons and one ALQ-87 electronic countermeasures (ECM) pod on the right inboard pylon.

TECHNICAL NOTES:
Armament: Up to 16,000 lbs. of externally carried ordnance
Engines: Two General Electric J-79-GE-15s of 17,000 lbs. thrust each
Maximum speed: 1,400 mph
Cruising speed: 590 mph
Range: 1,750 miles
Ceiling: 59,600 ft.
Span: 38 ft. 5 in. (27 ft. 6 in. folded)
Length: 58 ft. 2 in.
Height: 16 ft. 6 in.
Weight: 58,000 lbs. loaded

Click here to return to the Southeast Asia War Gallery.
