Interwar Development of Bombsights

DAYTON, Ohio - Estoppey D-1 and D-4 Bombsights located in the Interwar Bombsight exhibit in the Early Years Gallery at the National Museum of the U.S. Air Force. (U.S. Air Force photo)

DAYTON, Ohio - Estoppey D-1 and D-4 Bombsights located in the Interwar Bombsight exhibit in the Early Years Gallery at the National Museum of the U.S. Air Force. (U.S. Air Force photo)

Wimpris bombsight on a DH-4. An observer uses the Wimperis bombsight, an old type. The latest sight is inside the fuselage. During WW I, the U.S. Army Air Service used the Mark I bombsight – a copy of the British Wimperis bombsight – on its DH-4s. After adjusting the sight for altitude and airspeed, the bombardier essentially aimed it like a rifle. Lacking a stabilizer, the Mark I’s accuracy suffered from movements of the airplane in flight, but it could compensate a little for wind. (U.S. Air Force photo)

Wimpris bombsight on a DH-4. An observer uses the Wimperis bombsight, an old type. The latest sight is inside the fuselage. During WW I, the U.S. Army Air Service used the Mark I bombsight – a copy of the British Wimperis bombsight – on its DH-4s. After adjusting the sight for altitude and airspeed, the bombardier essentially aimed it like a rifle. Lacking a stabilizer, the Mark I’s accuracy suffered from movements of the airplane in flight, but it could compensate a little for wind. (U.S. Air Force photo)

Another bombsight used by the Air Service in WW I was the French Michelin.  Probably the best bombsight of the war, it could not compensate for wind – forcing the pilot to fly directly into or against the wind. (U.S. Air Force photo)

Another bombsight used by the Air Service in WW I was the French Michelin. Probably the best bombsight of the war, it could not compensate for wind – forcing the pilot to fly directly into or against the wind. (U.S. Air Force photo)

The Mark I-A bombsight – the primary Air Service bombsight immediately after the war - was a Wimperis modified for use at high altitudes. (U.S. Air Force photo)

The Mark I-A bombsight – the primary Air Service bombsight immediately after the war - was a Wimperis modified for use at high altitudes. (U.S. Air Force photo)

1922, the Sperry Gyroscope Company tried to improve the Mark I bombsight by attaching it to a Sperry gyroscope, but it failed to meet the Air Service’s needs. (U.S. Air Force photo)

1922, the Sperry Gyroscope Company tried to improve the Mark I bombsight by attaching it to a Sperry gyroscope, but it failed to meet the Air Service’s needs. (U.S. Air Force photo)

At McCook Field near Dayton, Ohio, Army Air Service engineers experimented with a bombsight designed in 1919, by Georges Estoppey.  A Swiss immigrant, Estoppey went to work for the Air Service in 1921. (U.S. Air Force photo)

At McCook Field near Dayton, Ohio, Army Air Service engineers experimented with a bombsight designed in 1919, by Georges Estoppey. A Swiss immigrant, Estoppey went to work for the Air Service in 1921. (U.S. Air Force photo)

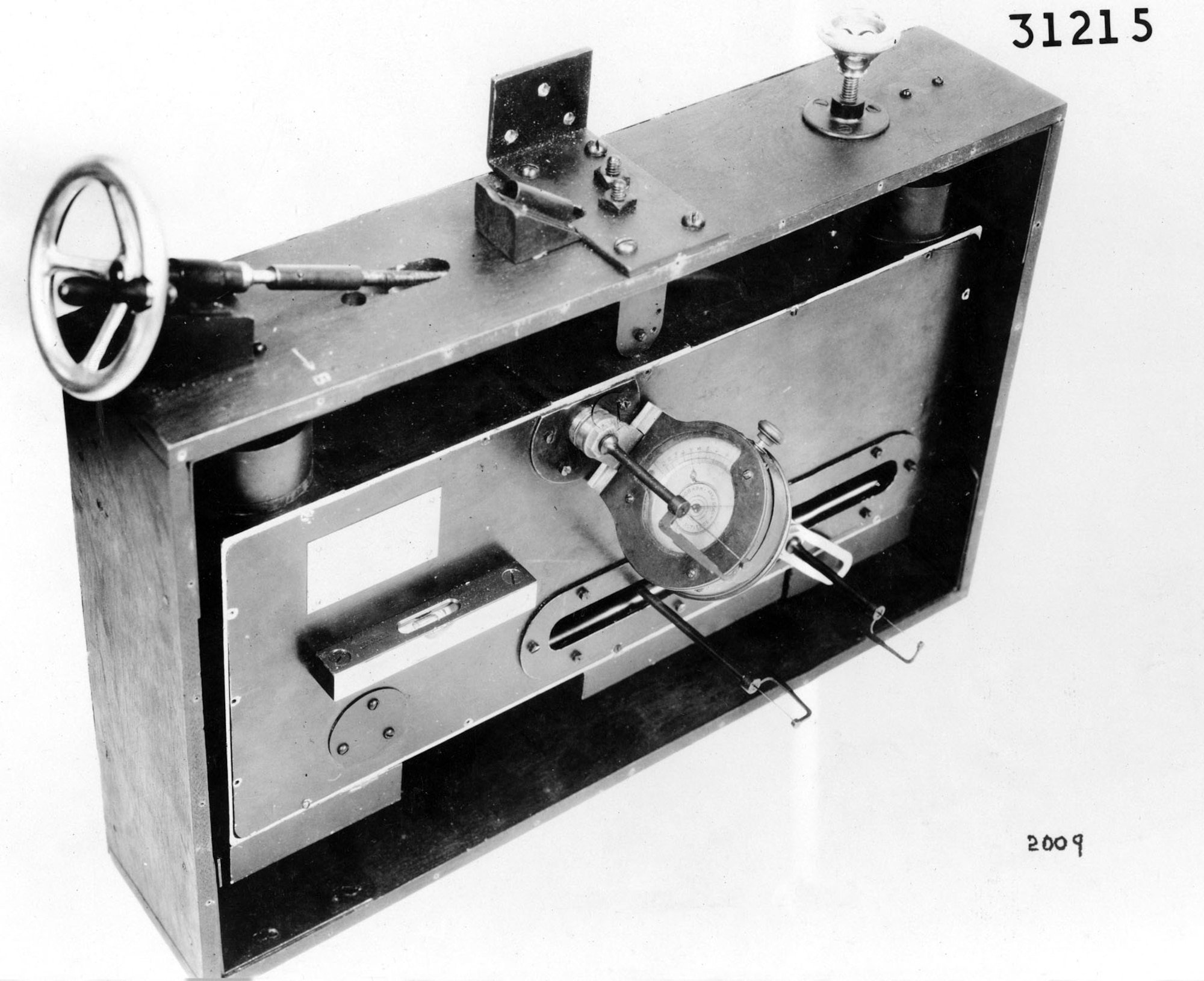

The D-1 produced by the Engineering Division at McCook field in 1922 was Estoppey’s first practical bombsight. It relied upon a pendulum motion for stabilization, and it provided much greater accuracy than the Mark I models. (U.S. Air Force photo)

The D-1 produced by the Engineering Division at McCook field in 1922 was Estoppey’s first practical bombsight. It relied upon a pendulum motion for stabilization, and it provided much greater accuracy than the Mark I models. (U.S. Air Force photo)

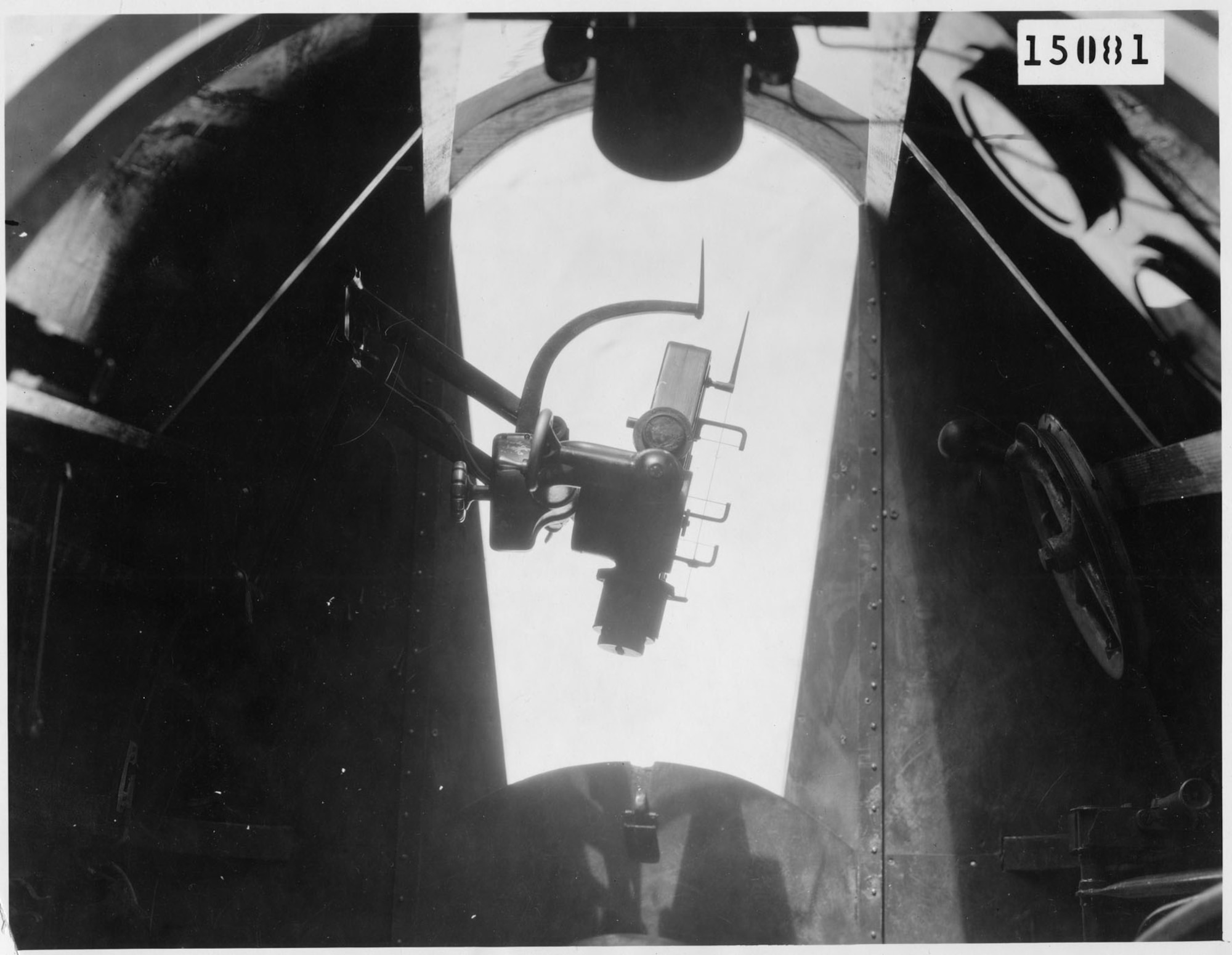

An Estoppey D-1 bombsight installed in a DeHavilland DH-4. (U.S. Air Force photo)

An Estoppey D-1 bombsight installed in a DeHavilland DH-4. (U.S. Air Force photo)

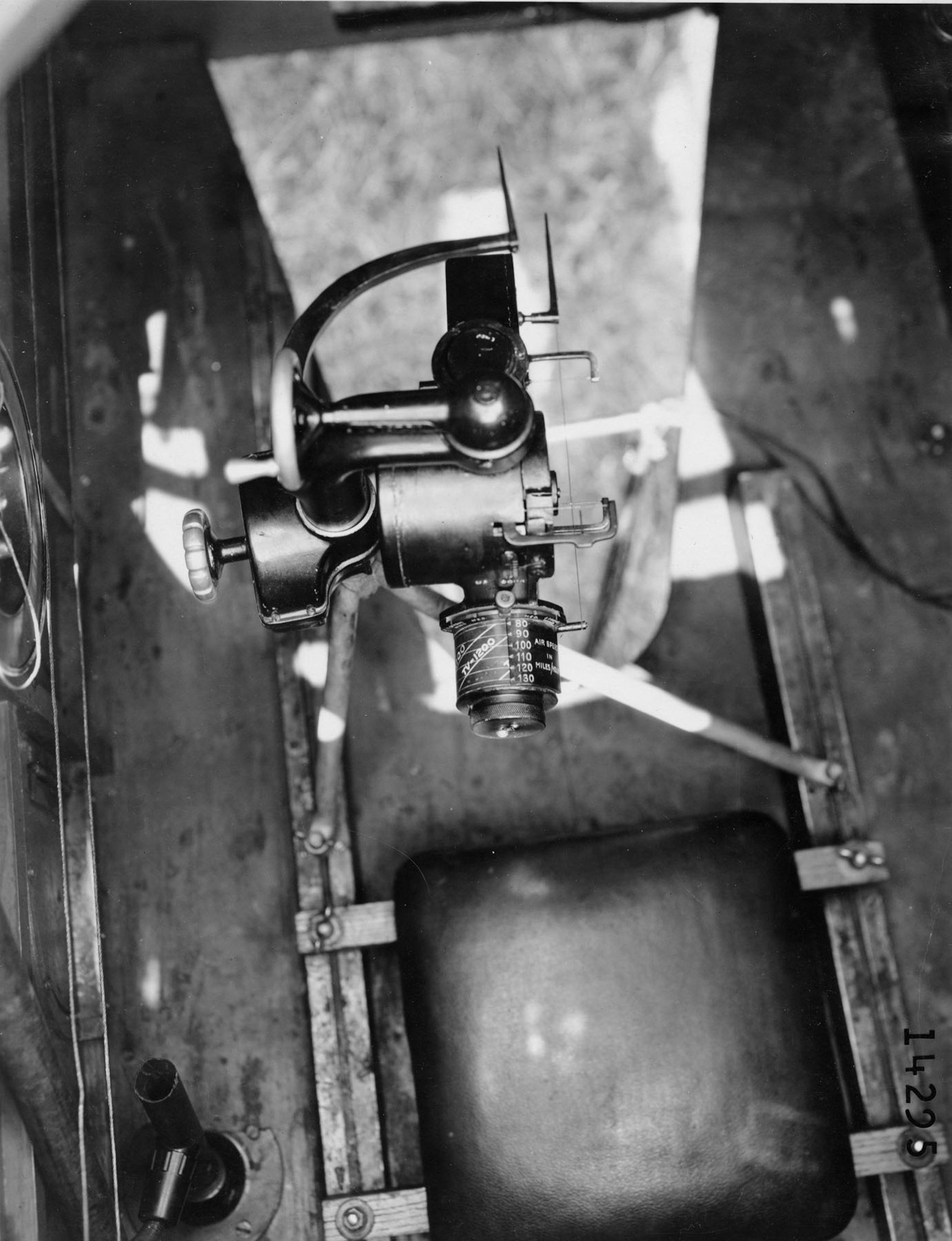

An Estoppey D-1 installed in a Martin MB-2 bomber. This photograph shows the sight adjusted to compensate for wind drift. (U.S. Air Force photo)

An Estoppey D-1 installed in a Martin MB-2 bomber. This photograph shows the sight adjusted to compensate for wind drift. (U.S. Air Force photo)

Illustration from a manual showing how the bombardier operated the D-1 bombsight. (U.S. Air Force photo)
PHOTO DETAILS  /   DOWNLOAD HI-RES 10 of 20

Illustration from a manual showing how the bombardier operated the D-1 bombsight. (U.S. Air Force photo)

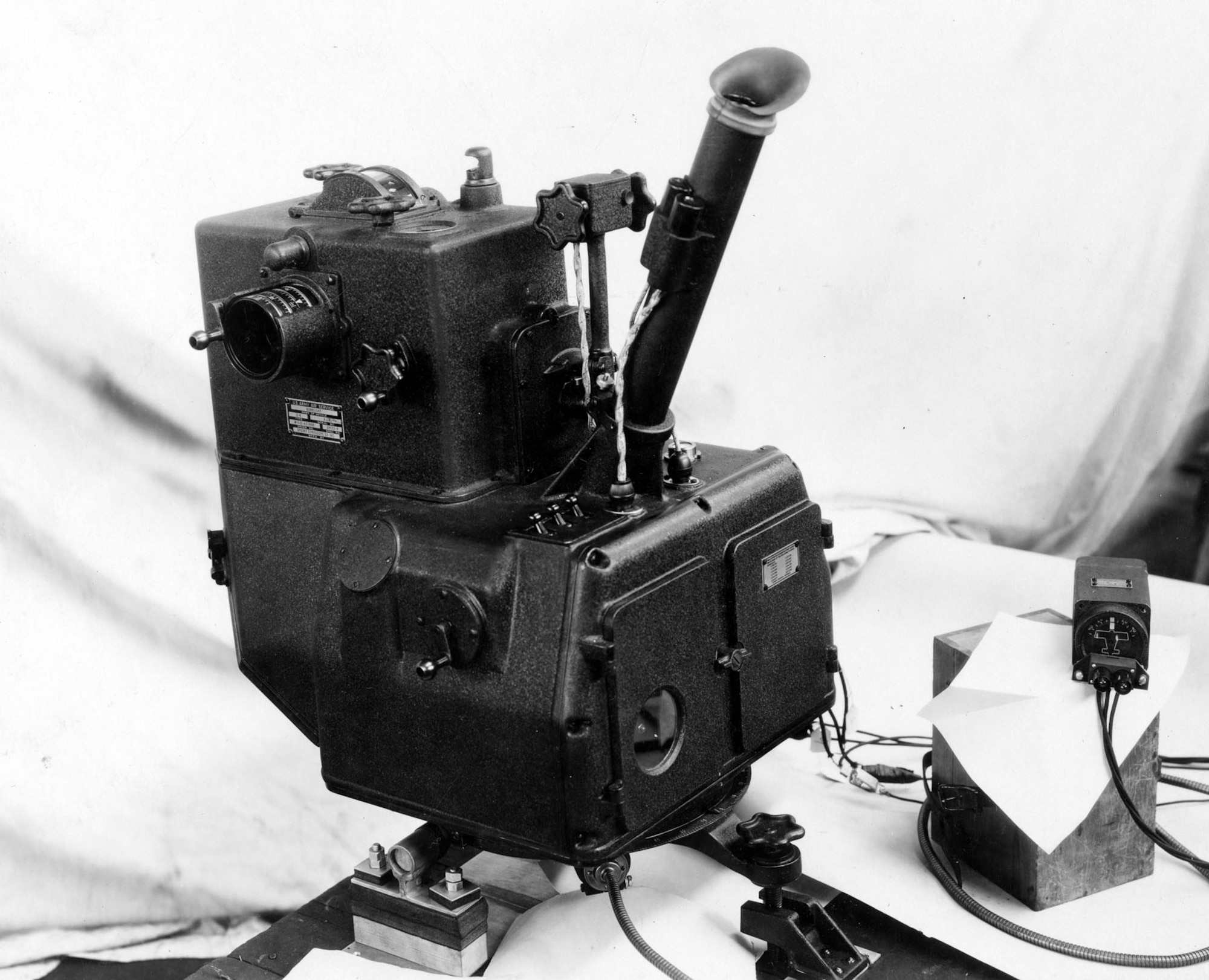

Sperry Gyroscope continued designing bombsights throughout the 1920s, but none proved satisfactory to the Army. The Sperry C-4 bombsight of 1932 could not match the accuracy of the Norden bombsights under development for the U.S. Navy. (U.S. Air Force photo)
PHOTO DETAILS  /   DOWNLOAD HI-RES 11 of 20

Sperry Gyroscope continued designing bombsights throughout the 1920s, but none proved satisfactory to the Army. The Sperry C-4 bombsight of 1932 could not match the accuracy of the Norden bombsights under development for the U.S. Navy. (U.S. Air Force photo)

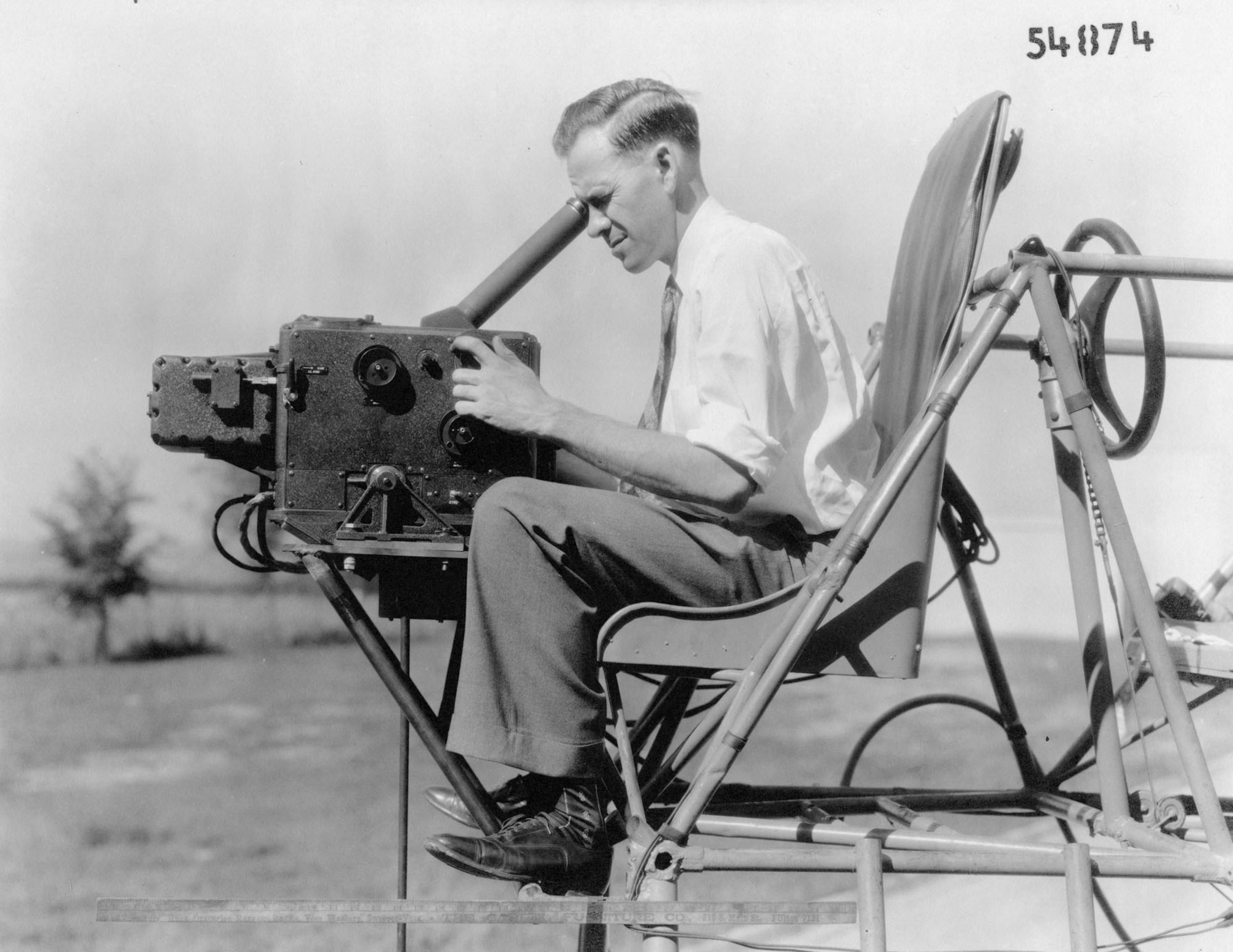

A variant of the Sperry bombsight undergoing evaluation by the Engineering Division in 1936. This photograph shows how a bombardier would operate it. (U.S. Air Force photo)
PHOTO DETAILS  /   DOWNLOAD HI-RES 12 of 20

A variant of the Sperry bombsight undergoing evaluation by the Engineering Division in 1936. This photograph shows how a bombardier would operate it. (U.S. Air Force photo)

Like so many other bombsights, the Inglis L-1 (1932) also proved inferior to the Norden bombsight. (U.S. Air Force photo)
PHOTO DETAILS  /   DOWNLOAD HI-RES 13 of 20

Like so many other bombsights, the Inglis L-1 (1932) also proved inferior to the Norden bombsight. (U.S. Air Force photo)

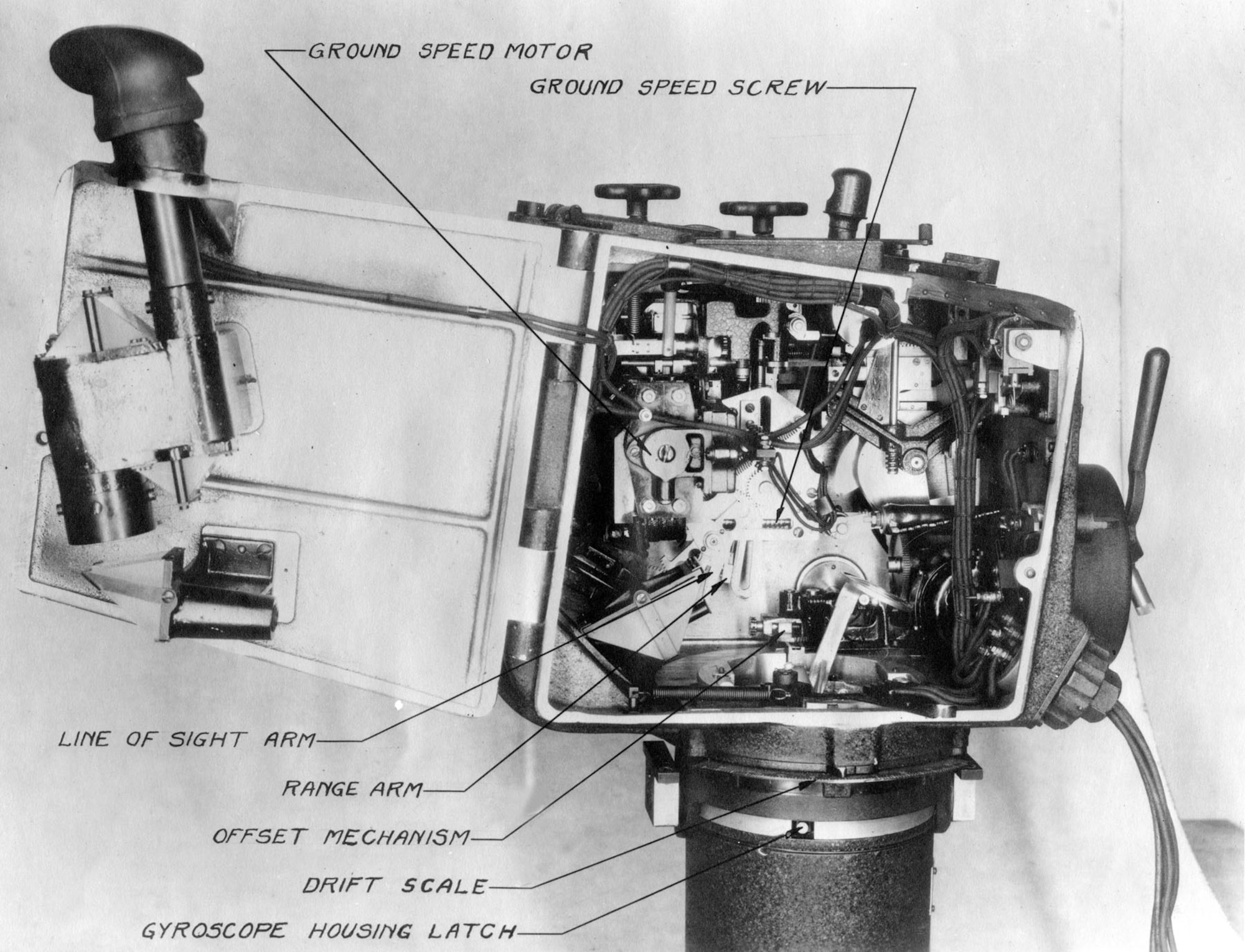

Interior view of the Inglis L-1 bombsight. (U.S. Air Force photo)
PHOTO DETAILS  /   DOWNLOAD HI-RES 14 of 20

Interior view of the Inglis L-1 bombsight. (U.S. Air Force photo)

In 1932, the Army acquired the Norden M-1 bombsight. Developed for the U.S. Navy, the Norden bombsight became the U.S. Army Air Forces’ premier, high-altitude bombsight in WW II. (U.S. Air Force photo)
PHOTO DETAILS  /   DOWNLOAD HI-RES 15 of 20

In 1932, the Army acquired the Norden M-1 bombsight. Developed for the U.S. Navy, the Norden bombsight became the U.S. Army Air Forces’ premier, high-altitude bombsight in WW II. (U.S. Air Force photo)

DAYTON, Ohio - Mark 1-A Bombsight located in the Interwar Bombsight exhibit in the Early Years Gallery at the National Museum of the U.S. Air Force. (U.S. Air Force photo)
PHOTO DETAILS  /   DOWNLOAD HI-RES 16 of 20

DAYTON, Ohio - Mark 1-A Bombsight located in the Interwar Bombsight exhibit in the Early Years Gallery at the National Museum of the U.S. Air Force. (U.S. Air Force photo)

DAYTON, Ohio - Mark 1-A Bombsight with Gyroscope located in the Interwar Bombsight exhibit in the Early Years Gallery at the National Museum of the U.S. Air Force. (U.S. Air Force photo)
PHOTO DETAILS  /   DOWNLOAD HI-RES 17 of 20

DAYTON, Ohio - Mark 1-A Bombsight with Gyroscope located in the Interwar Bombsight exhibit in the Early Years Gallery at the National Museum of the U.S. Air Force. (U.S. Air Force photo)

DAYTON, Ohio - Mark 1-B Bombsight located in the Interwar Bombsight exhibit in the Early Years Gallery at the National Museum of the U.S. Air Force. (U.S. Air Force photo)
PHOTO DETAILS  /   DOWNLOAD HI-RES 18 of 20

DAYTON, Ohio - Mark 1-B Bombsight located in the Interwar Bombsight exhibit in the Early Years Gallery at the National Museum of the U.S. Air Force. (U.S. Air Force photo)

DAYTON, Ohio - Sperry C-4B Bombsight located in the Interwar Bombsight exhibit in the Early Years Gallery at the National Museum of the U.S. Air Force. (U.S. Air Force photo)
PHOTO DETAILS  /   DOWNLOAD HI-RES 19 of 20

DAYTON, Ohio - Sperry C-4B Bombsight located in the Interwar Bombsight exhibit in the Early Years Gallery at the National Museum of the U.S. Air Force. (U.S. Air Force photo)

DAYTON, Ohio - Interwar Bombsight exhibit in the Early Years Gallery at the National Museum of the U.S. Air Force. (U.S. Air Force photo)
PHOTO DETAILS  /   DOWNLOAD HI-RES 20 of 20

DAYTON, Ohio - Interwar Bombsight exhibit in the Early Years Gallery at the National Museum of the U.S. Air Force. (U.S. Air Force photo)

"... in order to drop a bomb so that it will strike at least in the vicinity desired, the use of a bomb sight is imperative. However, this sight must be simple enough ... to use it even under hostile fire."
- American Expeditionary Force Booklet on High Altitude Bombsights, Aug. 20, 1918

During World War I, the U.S. Army Air Service used bombsights provided by the Allies. The British-designed Wimperis had the reputation of only being "better than nothing at all." The French Michelin could not compensate for wind -- forcing the pilot to fly directly into or against the wind, which made the bomber an easy target for anti-aircraft gunners. Unless they flew very low over the target, a very dangerous thing to do, the bombardiers achieved only marginal results with the small bombs their airplanes could carry. Therefore, developing a high-altitude bombsight capable of correcting for crosswinds became an important project for the Army Air Service after the war.

Hitting a target with a bomb from a fast-moving airplane is a difficult task. Even if traveling at 100 mph and only a few thousand feet above the ground, a bomb dropped just half a second too late could miss its target by hundreds of feet, and that error would be amplified by flying higher to avoid ground fire. In addition, the bombardier would have trouble seeing a small target tens of thousands of feet below, but simply using a telescope with crosshairs as a bombsight would not be enough. Any turbulence would bounce the airplane and throw off the aiming, and the bombsight needed internal stabilizers to counter the movement of the airplane.

A bombardier had to use a complex formula that incorporated the trajectories of different size bombs with the effects of altitude, airspeed, true ground speed, cross winds and other variables such as hitting a moving battleship. Because doing all these computations in combat would be almost impossible, the Army Air Service needed a bombsight that could automatically perform all these calculations for the bombardier. In addition, the bombardier needed a simple method of transmitting minor course corrections to the pilot on the final approach to the target.

The Army Air Service Engineering Division at McCook Field, Ohio, undertook the development of a new bombsight after WWI. Starting with the wartime Wimperis, designated the Mark I, the engineers incorporated a series of modifications that produced limited but inadequate improvements. Due to a lack of suitable Army bombsights, Gen. Billy Mitchell borrowed U.S. Navy Mark III-A bombsights to sink the Ostfriesland in 1921.

The Engineering Division produced the D-1 bombsight in 1921. Based upon a sight designed by Georges Estoppey, the D-1 used a stopwatch to synchronize the aircraft speed with the true ground speed and used a pendulum for stabilization. In 1926 the Army adopted a later model of the Estoppey bombsight, the D-4. More heavily constructed than the D-1, the D-4 also incorporated an improved internal timing mechanism. When in perfect repair and under ideal conditions, the D-4 bombsight achieved good results up to 8,000 feet, but at higher altitudes, bombing errors became excessive.

Meanwhile, the Engineering Division worked with the Sperry Gyroscope Co. to develop a bombsight designed by Alexander P. Seversky. Completed in 1924, the Sperry C-1 bombsight used a gyroscopic stabilizer.

Another bombsight developed by the Army Air Service and built by Sperry in 1928, the Inglis L-1, synchronized the airspeed, altitude, true ground speed, and the bomb's ballistics. It also had a gyroscopic stabilizer and an automatic bomb release. The addition of pendulums or gyroscopes helped stabilize bombsights, but none of these bombsights achieved the accuracy Army aviators expected. Ironically, the solution came from merging a very accurate bombsight developed by Carl Norden for the Navy with an automatic pilot developed by Sperry for the Army. This arrangement gave the bombardier control over the aircraft during the final approach to the target. Although not as accurate as the Norden bombsight, the interwar bombsights proved superior to those used in WWI, and they gave planners the tools needed to develop the doctrine of high-altitude, daylight precision bombing adopted by the U.S. Army Air Corps in the 1930s.
