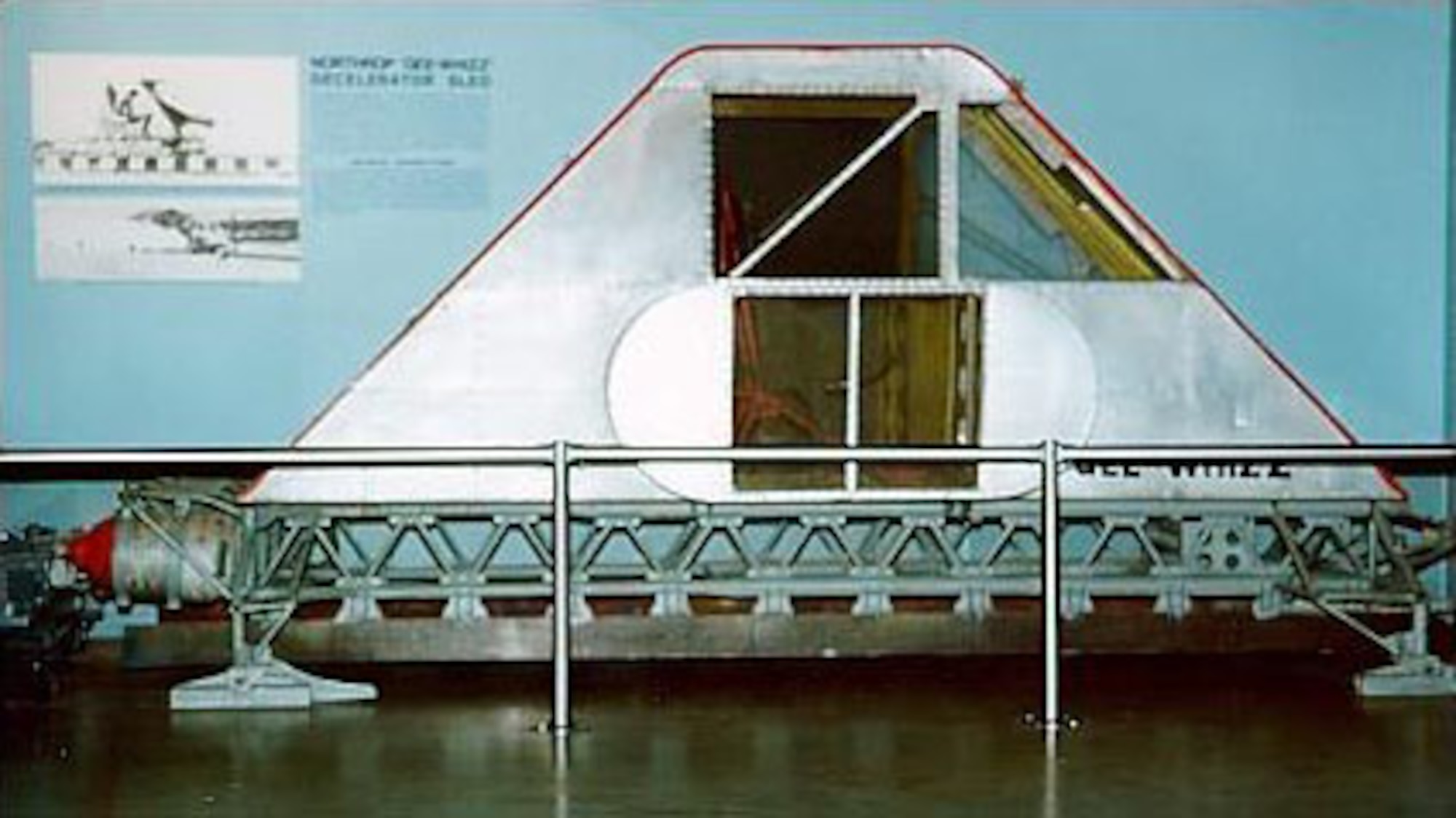

Northrop “Gee-Whizz” Decelerator Sled

During World War II, the U.S. military became concerned with pilot injuries experienced during aircraft accidents.  To better understand the problem, the U.S. Air Force ran tests launching this sled down a 2,000 ft. long track at up to 200 mph.

The sled was then quickly stopped, producing a deceleration of up to 46 Gs, or 46 times the force of gravity. Between April 1947 and June 1951, more than 250 tests led the Air Force to call for redesigned cockpits and pilot harnesses.

Dr.(Col.) John Stapp led this project and made 26 runs on the sled, the most by any one person. Though he suffered concussions, cracked ribs, broken wrists, and retinal hemorrhages, he simply said, "I took my risks for information that will always be of benefit. Risks like those are worthwhile."

Stapp also felt the tests proved seat belts could reduce automobile fatalities. Stapp's work was rewarded when President Lyndon Johnson signed the Highway Safety Act of 1966, requiring seat belts in all new cars sold in the United States beginning in 1968.

Dr.(Col.) Stapp was inducted into the National Aviation Hall of Fame in 1985.

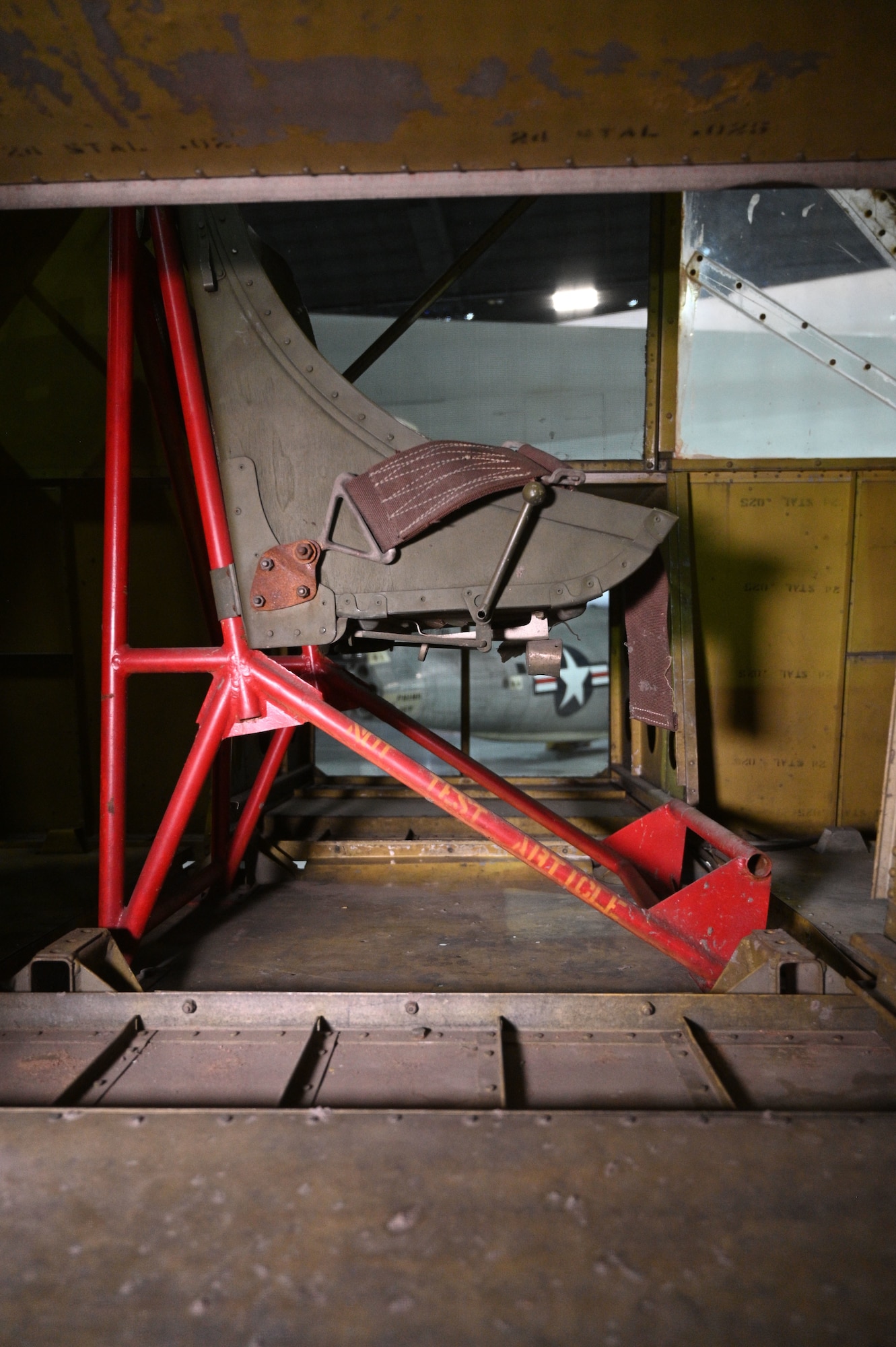

This vehicle was developed to test the effect of deceleration forces on humans and related equipment as encountered in aircraft crashes, ditching, rocket-powered seat ejections and parachute-opening shocks.

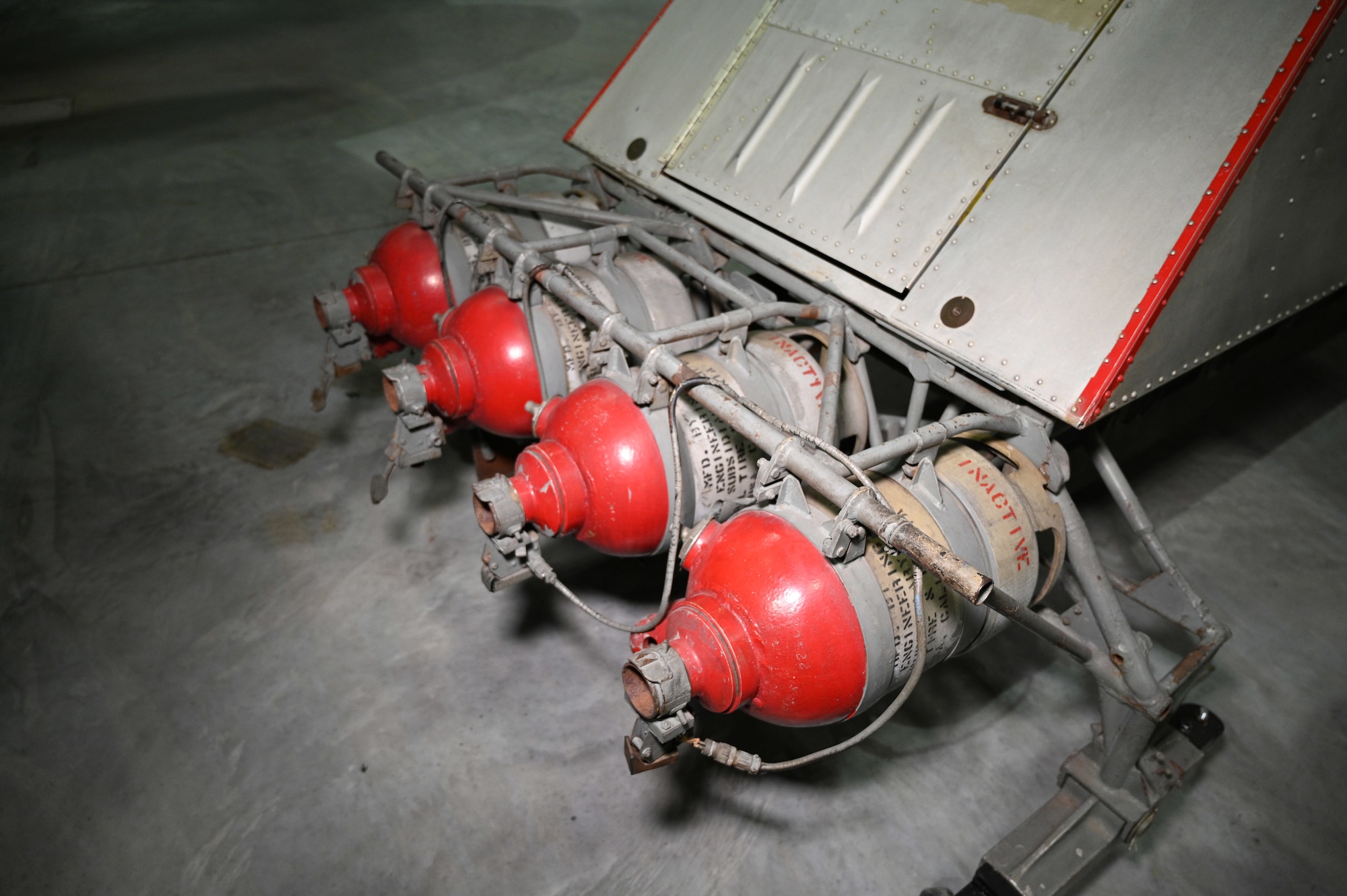

Built by Northrop Aircraft, in April 1947 the sled was mounted on a 2,000-foot missile launching track at Muroc, Calif. (now Edwards Air Force Base). Up to four solid fuel rockets, producing 1,000 pounds of thrust each for five seconds, produced a maximum sled speed of about 200 mph. The braking unit brought the sled to an abrupt halt, producing the desired deceleration effect of up to 50 Gs, or 50 times the force of gravity.

The first human to ride the sled was then-Capt. John P. Stapp on Dec. 10, 1947. Between April 1947 and the final run in June 1951, more than 250 sled tests were made using dummies, animals or humans. Volunteers, including later-Col. Stapp, subjected themselves to a deceleration force of more than 35 Gs on some tests.

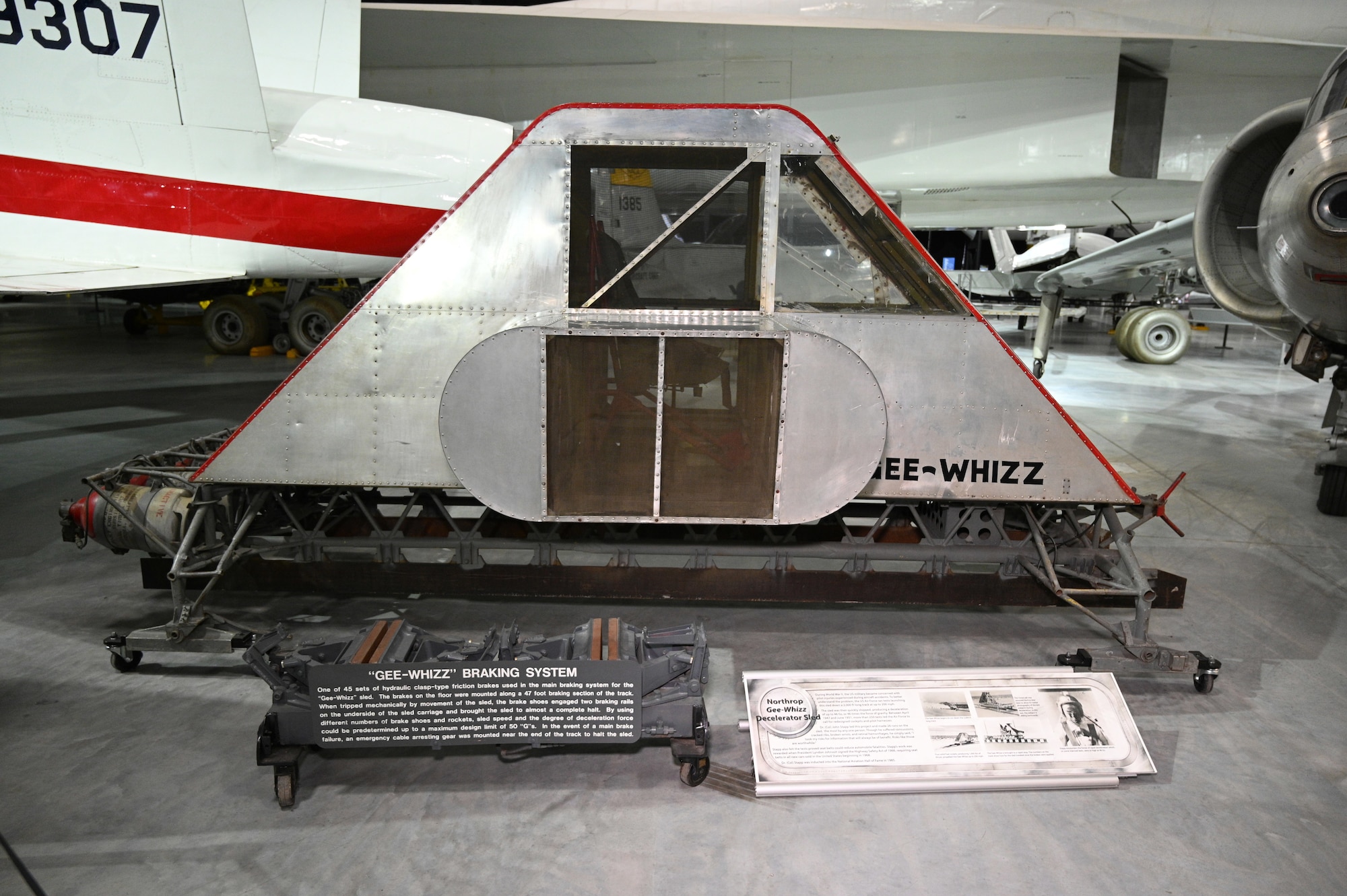

"Gee-Whizz" Braking System

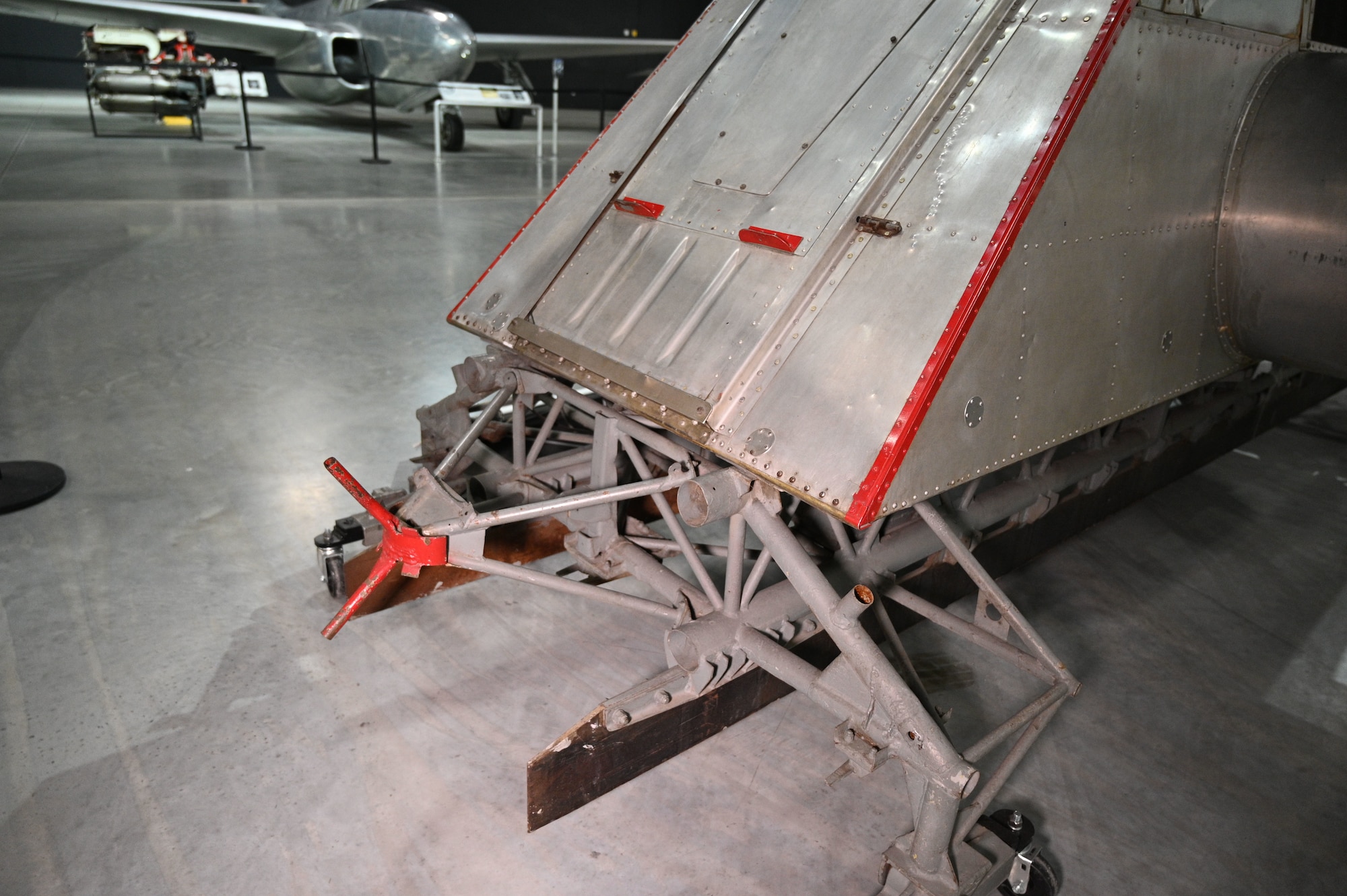

Forty-five sets of hydraulic clasp-type friction brakes were used in the main braking system for the "Gee-Whizz" sled. The brakes were mounted along a 47-foot braking section of the track. When tripped mechanically by movement of the sled, the brake shoes engaged two braking rails on the underside of the sled carriage and brought the sled to almost a complete halt. By using different numbers of brake shoes and rockets, sled speed and the degree of deceleration force could be predetermined up to a maximum design limit of 50 Gs. In the event of a main brake failure, an emergency cable arresting gear was mounted near the end of the track to halt the sled.
